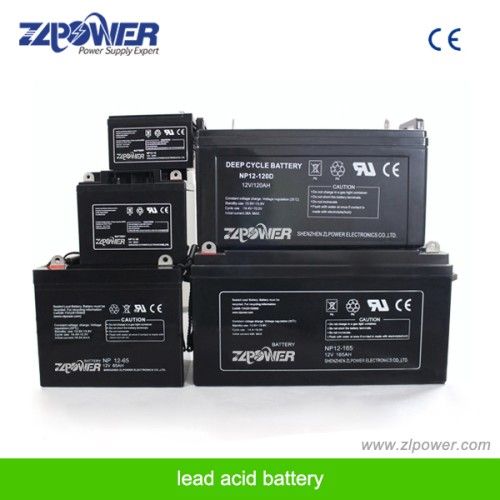

Sealed free maintenance lead acid battery, AGM Battery, Valve regulated battery up to 12V300Ah, 2V3000Ah.
FEATURES:
· Sealed and maintenance free operationperationperation
· Non-Spillable construction design. design. design.
· Safety valve installation for explosion proof.n proof.n proof.
· High quality and high reliability.ability.ability.
· Exceptional deep discharge recovery performance.ormance.ormance.
· Low self discharge characteristic.eristic.eristic.
· Flexibility design for multiple install positionsositionsositions
· The operating ambient temperature -40 ° C to +65 ° CC to +65 ° Cg; CC to +65 ° C
Main Application
Alarm Systems;
Marine Equipment;
Cable Television;
Medical Equipment;
Communications Equipment;
Micro Processor Based Office Machines;
Control Equipment; Portable Cine & Video Lights;ghts;ghts;
Computers; Power Tools;
Electronic Cash Registers;
Solar Powered Systems;
Electronic Test Equipment;
Telecommunications Systems;
Electric powered Bicycle and Wheelchairs;
Television & Video Recorders;ders;ders;
Emergency Lighting Systems;
Toys; Fire & Security Systems;tems;tems;
Uninterruptible Power Supplies;
Geophysical Equipment;
Vending Machines.
| Model | Volt | Capacity (Ah) | Dimension (mm) | Weight (kgs) | Unit/Carton | Carton Dimension |
| Length | Width | Total Height | L*W*H (mm) |
| NP12-5 | 12 | 5 | 90 | 70 | 101 | 1.35 | 10 | 374*192*128 |
| NP12-7 | 12 | 7 | 151 | 65 | 100 | 2.2 | 8 | 314*280*123 |
| NP12-12 | 12 | 12 | 151 | 98 | 100 | 3.6 | 4 | 310*230*120 |
| NP12-18 | 12 | 18 | 181 | 77 | 169 | 5.6 | 4 | 372*164*192 |
| NP12-24 | 12 | 24 | 175 | 166 | 125 | 8 | 2 | 176*263*198 |
| NP12-33 | 12 | 33 | 196 | 131 | 155 | 10.5 | 1 | 206*174*202 |
| NP12-38 | 12 | 38 | 197.5 | 165.5 | 170 | 12.8 | 1 | 365*179*205 |
| NP12-65 | 12 | 65 | 350 | 167 | 179 | 20.4 | 1 | 365*179*205 |
| NP12-100 | 12 | 100 | 330 | 171 | 220 | 30 | 1 | 420*186*270 |
| NP12-120 | 12 | 120 | 410 | 176 | 227 | 38 | 1 | 420*186*270 |
| NP12-150 | 12 | 150 | 482 | 170 | 240 | 47 | 1 | 491*178*265 |
| NP12-200 | 12 | 200 | 522 | 238 | 223 | 65 | 1 | 530*248*268 |
| NP12-250 | 12 | 250 | 522 | 268 | 226 | 72.00 | 1 | 530*278*269 |
