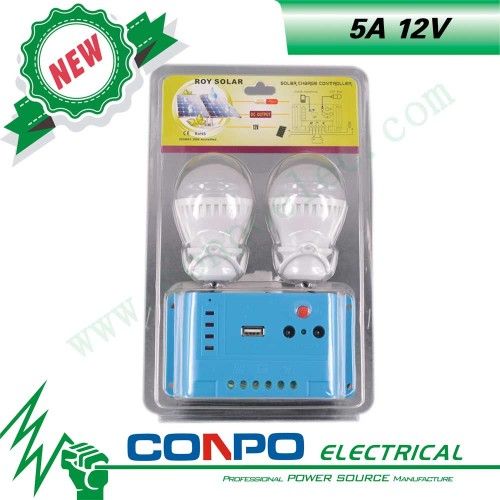

5A, 12V, USB, LED, PWM Solar Controller (with LED light)

bargain

Model NO.	CK10-SHS-5A, 12V, USB, LED, PWM, LED light
Certification	BV, ISO, CE, RoHS
Rated Voltage	12V
Specification	5A, 12V, USB, LED, PWM, LED light
HS Code	85371090
Condition	New
Application	Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station
Trademark	CONPO
Origin	Nanjing, China

Overviews
This is a new series of intelligent multi-purpose solar charge controllers. It's equipped with explicit LED for your choice. While meeting functional needs, it also offers user-friendly installation and operation. All in all, it's a popular high-efficient product.
Function features

1. Vivid LED indicators show system battery capacity, charging and discharging state of battery.

2. Protection functions such as overcharging, over discharging, overload and reverse connection.

3 PWM charging increases charging efficiency by 3% to 6%, compared with non-PWM charging.

4. The parameters of charging and discharging are preset, so no need to adjust the parameters. (Special parameters need to be advised in advance.)

5. USB output function.

Technical specifications

Model	CK10U-5A	CK10-SHS-5A	CK10U-10A	CK10-SHS-10A
Rated Current	5A	5A with LED light	10A	10A with LED light
System Voltage	12V
No load Loss	≤12mA (USB disconnect)ect)ect)
Charging mode	PWM
Float Charging Voltage	13.8V/27.6V
Absorption Voltage	14.4V/28.8V(lasting time: 2 hours)
Charging/Discharging Circuit Voltage Drop	<0.2V (<0.1V)t;0.1V)
Low Voltage Disconnection	10.7V/21.4V
Low Voltage Reconnecting	12.6V/25.2V
Overloading	≥1.2*rated current, 60s 60s 60s
	≥1.5*rated current, 10s 10s 10s
	≥1.8*rated current, 0.2s0.2s0.2s
USB Output	5V, 1A
Installing Cables Size	AWG24 ~ AWG12
Working Temperature	-20ºCordm;Cordm;C~ 50ºCordm;Cordm;C
Dimensions (L x W x Hmm)	119 x 64 x 26
Net Weight(g)	123
