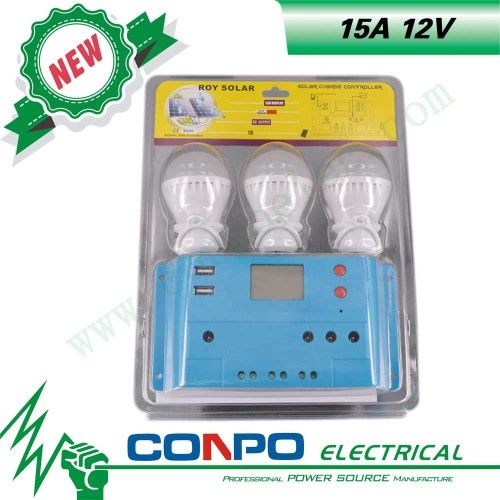

15A, 12V, USB, LCD, PWM Solar Controller (with LED light)

bargain

Model NO.	CK10D-SHS-15A, 12V, USB, LCD, PWM, LED light
Certification	BV, ISO, CE, RoHS
Rated Voltage	12V
Specification	15A, 12V, USB, LCD, PWM, LED light
HS Code	85371090
Condition	New
Application	Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station
Trademark	CONPO
Origin	Nanjing, China

Overviews
This intelligent ,multi-purpose solar charge and discharge controller has a very friendly interface of fixed LCD display .Various control parameters can be flexibly set ,fully meet your various application requirements.
Function features

1. Vivid LCD graphic symbols

2. Simple button operation

3. Automatic identification of system voltage level

4. Intelligent PWM charging mode

5. Adjustable charge-discharge protection

6. Automatic temperature compensation

7. Settable operation mode of load

8. Battery reverse-discharge protection

9. Battery low voltage disconnection(LVD)

10. Battery reverse connection protection

11. Over current protection

12. USB output

Technical specifications

Model	CK15DU	CK10D-SHS-15A
Rated Current	15A	15A(with LED light)
System Voltage	12V
PV Open Circuit Voltage	<50V
Float Charging Voltage	13.8V/27.6V
Low Voltage Disconnection	10.7V/21.4V
Low Voltage Reconnection	12.6V/25.2V
Boost Voltage	Sealed 14.4V/28.8V Duration:2hours
	GEL 14.2V/28.4V Duration:2hours
	Flooded 14.6V/29.2V Duration:2hours
Over-voltage Disconnection	15.5V/31.0V
Over-voltage Reconnection	15.0V/30.0V
Self-consumption	≤13mA13mA13mA
Charge/discharge Loop Voltage Drop	<0.2V/<0.1V
USB Output	Max 5V/1A
Wiring	≤AWG12WG12WG12
Working Temperature	-20°Cdeg;Cdeg;C~60°Cdeg;Cdeg;C
Storage Temperature	-30°Cdeg;Cdeg;C~70°Cdeg;Cdeg;C
Working Humidity	10%-90%,no condensation
Dimension(L x W x Hmm)	168 × 88 × 2888 × 28es; 2888 × 28
Net weight(g)	220
