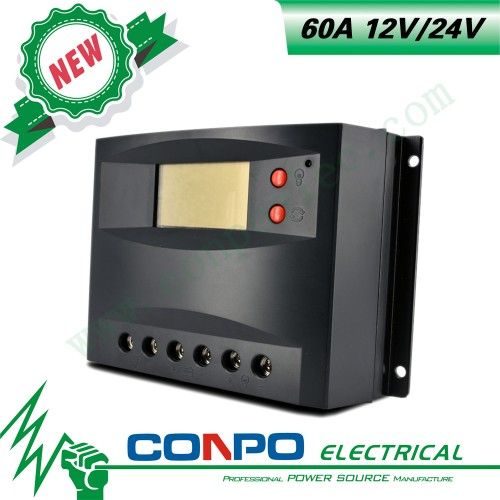

60A, 12V/24V, LCD, PWM Solar Controller

bargain

Model NO.	CK60D-60A, 12V/24V, LCD, PWM
Certification	BV, ISO, CE, RoHS
Rated Voltage	12V/24V Auto.
Specification	60A, 12V/24V, LCD, PWM
HS Code	85371090
Condition	New
Application	Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station
Trademark	CONPO
Origin	Nanjing, China

Overviews
This intelligent ,multi-purpose solar charge and discharge controller has a very friendly interface of fixed LCD display .Various control parameters can be flexibly set ,fully meet your various application requirements.
Function features

1. Vivid LCD graphic symbols

2. Simple button operation

3. Automatic identification of system voltage level

4. Intelligent PWM charging mode

5. Adjustable charge-discharge protection

6. Automatic temperature compensation

7. Settable operation mode of load

8. Battery reverse-discharge protection

9. Battery low voltage disconnection(LVD)

10. Battery reverse connection protection

11. Over current protection

12. USB output

Technical specifications

Model			CK50D-40A	CK50D-50A	CK60D-60A
Input		Rated Charge Current	40A	50A	60A
		PV Voltage	≤50V;50V;50V
Output		System	12V/24V auto.
		High voltage disconnection(HVD)	16.00V×1/×2/×4(0.5V)es;2/×4(0.5V)(0.5V)es;2/×4(0.5V)
		Rated Discharging Current	40A	50A		60A
		No-load Loss	≤14mA14mA14mA
		Charge Loop Voltage Drop	≤0.22V.22V.22V
		Discharge Loop Voltage Drop	≤ 0.12V.12V.12V
		Charging Mode	PWM Multi-stage(bulk, absorption,float)
		Float Charge Voltage	13.8(12.8V~14.2V)×1/×2/×41/×2/×4s;2/×41/×2/×4
		Absorption Charge Voltage	14.4V(13.6V~15.2V) ×1/×2/×41/×2/×4s;2/×41/×2/×4
		Duration of Absorption Charge	2hs
		Low Voltage Disconnection(LVD)	10.8V(10.5V~12V) ×1/×2/×41/×2/×4s;2/×41/×2/×4
		Low Voltage Reconnection(LVR)	12.6V(11.5V~13V) ×1/×2/×41/×2/×4s;2/×41/×2/×4
		Load Working Mode	Regular Controller Mode
			Light Control with switch-off point at night
			Light control Mode
		Light Control Voltage	5V ×1/×2/×41/×2/×4s;2/×41/×2/×4
		Battery Type	GEL, SLD, FLD and USR(default)
Other	Man-machine Interface		LCD,2 buttons
	Heat Sink		AL alloy
	Wiring		PCB terminal, ≤25mm25mm25mm²
	Working Temperature		-20 ~ +55 °Cdeg;Cdeg;C
	Storage Temperature		-30 ~ +80 °Cdeg;Cdeg;C
	Working humidity		10% ~ 90%, No Condensation
	Dimension(L x W x Hmm)		188x125x48.5		187x125x56
	Net weight(g)		562	562	701
	IP Code		IP30
