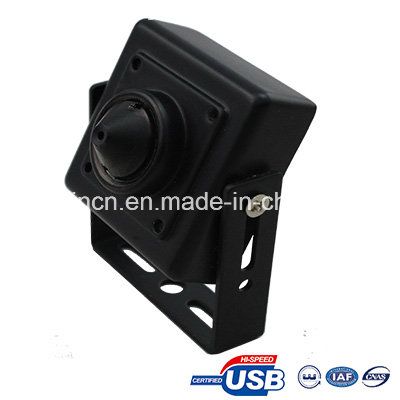

USB ATM Mini Camera Support Yuv UVC Android Linux System
| Model NO. | SX-608 |
| Style | Mini Camera |
| Sensor | CMOS |
| Horizontal Resolution | 720p |
| Certification | CE, FCC, RoHS, ISO9001:2008 |
| Effective Distance | 0-9m |
| Interface | USB2.0/480MB/S |
| Video Mode | Yuy2 |
| Trademark | Shixin or OEM or ODM |
| Technology | WDR |
| Type | Video Camera |
| HDMI Format | 720P |
| Kind | Autofocus Lens |
| Feature | High Definition, Mini Size, Auto BLC, Camera |
| Sensor Size | 1/4 inch |
| Pixel Size | 1/4" |
| Frame Rate | 30fps for VGA |
| Origin | Shenzhen, China |
USB Digital Camera, Mega CMOS Security Mini Camera for ATM and Bank Security.
Bank ATM USB Security camera directly connect with PC to surveillance and record, nice for personal use, simple and easy. Professional for ATM, Kiosk, Skin Analysis Device, Self-service terminal machine. Lightweight, hidden, exquisite.
Features:
1, bank ATM USB mini camera
2. Auto detect person face
3. Software wide dynamic function
4. With capturing and recording function
Bank ATM USB secuirty camera
Specifications:
Sensor: Color CMOS Sensor
Effective pixel: 0.3-1.3 million pixels
Frame: 30fps @ 640*480; 25fps @ 1280*720
Minimum Illumination: 1.0Lux
Lens: 3.7MM lens (1.7mm, 2.8mm, 3.6mm, 4.2mm Lens option)
Exposure: Auto
White Balance: Auto
S/N: ≥ 48dB48dB48dB
Interface: USB2.0
Monitoring Distance: 5-100m (with 1.5m USB cable, 4meters optional)
With Remote client software for display and record
Remote Surveillance, Easy setting up, fluent network transmission.
Specifications:
Bank ATM USB Security camera directly connect with PC to surveillance and record, nice for personal use, simple and easy. Professional for ATM, Kiosk, Skin Analysis Device, Self-service terminal machine. Lightweight, hidden, exquisite.
Features:
1, bank ATM USB mini camera
2. Auto detect person face
3. Software wide dynamic function
4. With capturing and recording function
Bank ATM USB secuirty camera
Specifications:
Sensor: Color CMOS Sensor
Effective pixel: 0.3-1.3 million pixels
Frame: 30fps @ 640*480; 25fps @ 1280*720
Minimum Illumination: 1.0Lux
Lens: 3.7MM lens (1.7mm, 2.8mm, 3.6mm, 4.2mm Lens option)
Exposure: Auto
White Balance: Auto
S/N: ≥ 48dB48dB48dB
Interface: USB2.0
Monitoring Distance: 5-100m (with 1.5m USB cable, 4meters optional)
With Remote client software for display and record
Remote Surveillance, Easy setting up, fluent network transmission.
Specifications:
SX-608 / 6130A-1Specification | |
| Sensor | 1.3Mega Pixel /CMOS |
| Array size | 7.5fps:1280Hx720V(YUV); 25fps: 1280Hx720V (MJPEG); 30fps: 640Hx480v |
| Image area | 2.8µm x 2.8µmx 2.8µmicro;mx 2.8µm |
| Pixel size | 1/4 inch |
| Color filter array | RGB Bayer Pattern |
| White balance control/Exposure control | Auto/ user selectable |
| Video mode | YUY2 |
| Min. | 1.0V/lux-SEC(550nm) |
| ADC resolution | 10-bit,on chip |
| Frame rate | 25fps for MJPEG; Up to 30fps for VGA |
| S/N ratio | 44 dB |
| Dynamic range | ﹥68dB68dB |
| Interface type | USB2.0/480Mb/s |
| Operating temperature | -20 degree~+50 degree |
| USB Powered | DC 5V |
| System requirement | WinXP/Vista/Win7(Win98/2000 use UVC Driver) |
