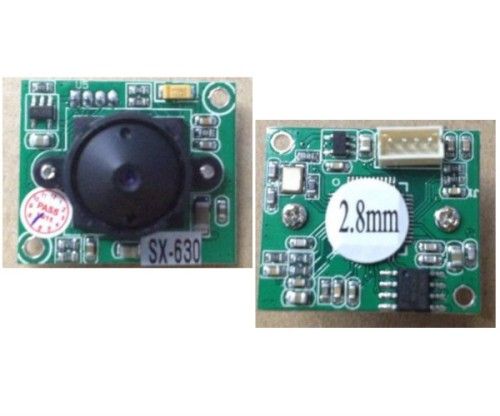

USB2.0 0.3MP Plug and Play Mini USB Digital Board Camera (SX-630Y)
| Model NO. | SX-630Y |
| Certification | CE |
| Model Number | Sx-630y |
| Image | 0.3 MP |
| Sensor | CMOS |
| Transport Package | Standard Export Carton |
| Origin | Shenzhen China |
| Type | USB Writing Board |
| Product Name | Mini USB Digital Board Camera |
| Lens Option | 3.7mm ( Optional) |
| USB 2.0 | Standard |
| Trademark | shixin |
| Specification | CE, FCC, RoHS |
| HS Code | 8529904100 |
USB2.0 0.3MP Plug and Play MINI USB Digital Board Camera (SX-630Y)
USB2.0 0.3 Megapixel Color Board Camera
* 0.3 megapixel sensor with RGB color filter
* High speed USB 2.0 interface
The 480P HD USB2.0 CMOS board camera module is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It uses high quality image sensors made by Himax, which is one of the world leaders in this field of electronics.
It uses MJPEG compression technology to reach high frame rate video output. The HD USB2.0 camera module is designed for consumer items, equipment manufacturers, experimenters and hobbyists.
*universal computer support and user friendly plug and play intergration
*eliminates costly frame grabber and simplifies cabling
*snapshot shutter provides crisp images of moving objects
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
USB2.0 0.3 Megapixel Color Board Camera
* 0.3 megapixel sensor with RGB color filter
* High speed USB 2.0 interface
The 480P HD USB2.0 CMOS board camera module is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It uses high quality image sensors made by Himax, which is one of the world leaders in this field of electronics.
It uses MJPEG compression technology to reach high frame rate video output. The HD USB2.0 camera module is designed for consumer items, equipment manufacturers, experimenters and hobbyists.
*universal computer support and user friendly plug and play intergration
*eliminates costly frame grabber and simplifies cabling
*snapshot shutter provides crisp images of moving objects
| Sensor | 0.3Mega Pixel /CMOS |
| Aarray size | 7.5fps: 1280Hx720V(YUV); 25fps: 1280x720V(MJPEG); 30fps: 640Hx480V |
| Pixel Size | 2.8µ m x 2.8µ m 2.8µ mcro; m 2.8µ m |
| Size of sensor | 1/34inch |
| Color Filter Array | RGB Bayer Pattern |
| Max Data Rate | 40MPS |
| Output Video Format | YUY2 |
| Responsivity | 1.0V/lux-SEC(500nm) |
| ADC Resolution | 10-bit, on chip |
| Frame rate | Up to 30fps for VGA |
| S/N Ratio | 42dB |
| DynamicRange | 86Db |
| Interface type | USB 2.0 |
| Operating Temperature | -20 to 70(degree) |
| Power consumption | 0.7W |
| System requirement | WinXP/Vista/Win7(Win98/2000 use UVC Driver) |
