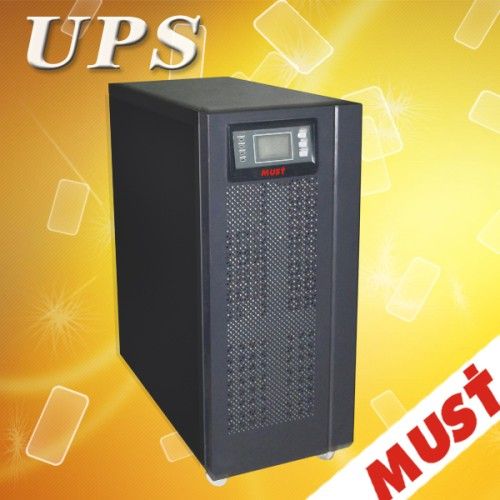

High Frequency 6kVA-10kVA Online UPS

540 USD

Model NO.	EH5000
Type	On-line
Application	Fire Safety
Standby Time	Long-acting Machine
Output Capacity	Large Type
Brand	Must or OEM
Input Voltage	115-300VAC
Dispaly	LCD Display
Specification	ISO, CE, FCC
HS Code	8504402000
Phase	Single Phase
Protection	Overvoltage
Classification	Lighting/Power
Standby UPS	Sine Wave Output UPS
Equipment Mode	Decentralized
Technology	IGBT
Capacity	6kVA-10kVA
Trademark	MUST
Origin	China

Parallel Units with a Single Output of up to 40kVA
True N+1 Redundancy
DSP Double-Conversion On-line Sinewave Design
Input Power Factor Correction
Hot-Swappable User Replaceable Batteries
LCD Display with Advanced Monitoring for Easy UPS Management
Programmable 50/60Hz Frequency Conversion
Optional Remote Emergency Power Off (REPO)
Wide Input Voltage Window
Precision Output Voltage Regulation
Superior Brownout, Surge & Transient Protectionctionction
Optional Extended Battery Banks & Chargersrgersrgers
RS-232C, USB & Optional SNMP/HTTP AgentAgentAgent
WINPOWER® UPS Monitoring & Management Software Software Software

Model		EH5000-6K	EH5000-6KS	EH5000-10K	EH5000-10KS
CAPACITY		6000 VA / 4800 W		10000 VA / 8000 W
INPUT
Voltage Range	Low Line Transfer	176 VAC @ 100% load / 110 VAC @ 50% load
	Low Line Comeback	186 VAC @ 100% load / 120 VAC @ 50% load
	High Line Transfer	300 VAC
	High Line	290 VAC
	Comeback
Frequency Range		46~54 Hz or 56~64 Hz
Phase		Single phase with ground
Power Factor		≥0.99 @ 100% loadloadload
OUTPUT
AC Voltage Regulation (Bat. Mode)		±1 %usmn;1 %usmn;1 %
Frequency Range		46~54 Hz or 56~64 Hz
(Synchronized Range)
Frequency Range (Bat. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz± 0.1 Hz 0.1 Hz± 0.1 Hz
Current Crest Ratio		3:1
Harmonic Distortion		<= 3 % THD (Linear Load)/<= 6 % THD(Non-linear Load)r Load)
Transfer Time	AC to DC	Zero
	Inverter to Bypass	Zero
Waveform (Bat. Mode)		Pure Sine Wave
EFFICIENCY
To AC Mode		89%
To Battery Mode		88%
BATTERY
Battery Type		12 V / 7 AH	Depending on applications	12 V / 9 AH	Depending on applications
Numbers		20	18 - 20	20	18-20
Typical Recharge Time		7 hours recover to 90% capacity	Depending on battery capacity	9 hours recover to 90% capacity	Depending on battery capacity
Charging Current (max.)		1.0 A	4.0 A	1.0 A	4.0 A
Charging Voltage		273 VDC	273 VDC	273 VDC	273 VDC
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
LED Display		Sixteen LEDs indicating UPS status, Load level, Battery level, overload, fault, and programmable outlet
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)		592 X 250 X 576
Net Weight (kgs)		81	25	83	27
OPERATING ENVIRONMENT
Humidity		20-90 % RH @ 0- 40°C (non-condensing)sing)sing)
Noise Level		Less than 55dB @ 1 Meter		Less than 58dB @ 1 Meter
CMANAGEMENT
Smart RS-232/USB		Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC, and MAC, and MAC
Optional SNMP		Power management from SNMP manager and web browser
