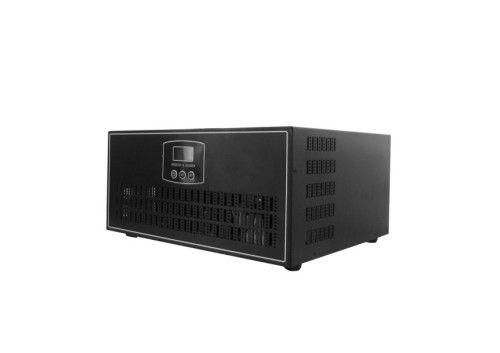

Sm Series Home UPS/Invercharger
bargain
add to cart| Model NO. | SM0612, SM1012 |
| Type | Home UPS |
| Application | Home Appliance |
| Standby Time | Long-acting Machine |
| Output Capacity | Medium Type |
| Trademark | EAST, OEM |
| Phase | Single Phase |
| Protection | Short Circuit |
| Classification | Home Back up Power |
| Standby UPS | Sine Wave Output UPS |
| Brand | East |
| Origin | China |
Introductions:
The SM power system is an inverter but also contains a powerful smart charger. It is an extremely good choice for utility back up power, provide a pure sine wave power to all equipments. However, it also can be used as a UPS for computers.
An inverter, charger and switching box can be replaced with a single SM series unit.
Features & Benefitsnefitsefits
Reliable, Durable and Economical Power for Grid and Mobile Applications
Microprocessor based Inverter/Charger provides Ultra-clean pure sine wave output with less than 5% total harmonic distortion
Supply energy to various loads such as resistive load, inductive load, motors and rectifier load.
Control panel with large LCD
Powerful 300% surge power
Low sleep mode power consumption of less than 5W
Phase & frequency synchronization option for seamless transfer timestimestimes
Programmable big current, 3 stage battery charger
Long backup time up to 10 hours (based on the battery bank and loads).
Easy to install, easy to maintain, and built for years of reliable service
The SM power system is an inverter but also contains a powerful smart charger. It is an extremely good choice for utility back up power, provide a pure sine wave power to all equipments. However, it also can be used as a UPS for computers.
An inverter, charger and switching box can be replaced with a single SM series unit.
Features & Benefitsnefitsefits
Reliable, Durable and Economical Power for Grid and Mobile Applications
Microprocessor based Inverter/Charger provides Ultra-clean pure sine wave output with less than 5% total harmonic distortion
Supply energy to various loads such as resistive load, inductive load, motors and rectifier load.
Control panel with large LCD
Powerful 300% surge power
Low sleep mode power consumption of less than 5W
Phase & frequency synchronization option for seamless transfer timestimestimes
Programmable big current, 3 stage battery charger
Long backup time up to 10 hours (based on the battery bank and loads).
Easy to install, easy to maintain, and built for years of reliable service
| Model Specification | SM1012 | SM1612 | SM2524 | SM3524 | ||
| DC Input | Nominal Input Voltage | 12V | 24V | |||
| DC Input Voltage Range | 10-15V | 20V-30V | ||||
| No battery(AC normal) | Working | |||||
| AC Input | Maximum bypass overload current | 20A | 30A | 35A | 40A | |
| Input voltage range | 170V-254V | |||||
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | |||||
| Generator | Yes | |||||
| Output | Nominal output voltage | 220V(+/-10%) | ||||
| Nominal output Frequency | 50Hz/60Hz(+/-0.3Hz) | |||||
| Output waveform | Pure sine wave | |||||
| Continue power | 1000W | 1600W | 2500W | 3500W | ||
| Surge protection | 3000W | 4800W | 7500W | 10500W | ||
| Efficiency | > 80% | |||||
| Power save mode | < 20W | |||||
| Power consumption in Power save mode | 5W | |||||
| Transfer Time | 16+/-4ms | |||||
| Power Factor | 0.8 - 1.0 | |||||
| THD | < 5% | |||||
| Inductive Load | Yes | |||||
| Motor Load | Yes | |||||
| Rectifier Load | Yes | |||||
| Battery charger | Adjustable Charge current | 10-40A | 10-60A | 10-70A | 10-70A | |
| Adjustable Charge voltage | 13-15V | 26V-30V | ||||
| Number of Charging stages | 3 stages-Bulk, Boost, Float | |||||
| General | Human machine interface | LCD& LED& Buzzermp; Buzzerp; Buzzer | ||||
| Operating temperature | 0-50 degree centigrade | |||||
| Operating humidity | 5%-95%RH | |||||
| Forced Air Cooling | Variable Speed fans | |||||
| Wall Mounting | YES | |||||
| Shipping Weight (kg) | Not ready | 20 | Not ready | |||
| Dimensions (WxDxH) mm | Not ready | 447*225*185 | Not ready | |||
| Technical Specifications subject to change without notification. | ||||||
