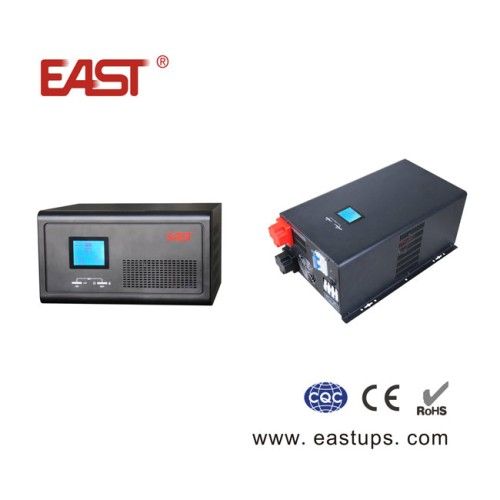

Pure Sine Wave Inverter 300W~3500W
bargain
add to cart| Model NO. | 300W, 600W, 1000W, 1600W, 2500W, 3500W |
| Output Power | 300W~3500W |
| Output Type | Single |
| Type | DC/AC Inverters |
| Transport Package | Carton Box |
| Certification | CE |
| Grid Type | Pure Sine Wave Inveter |
| Nature of Wave String | Sine Wave Inverter |
| Trademark | EAST |
| Origin | China |
The Pure Sine Wave Inverter is desirable long backup power solution for home and office appliances. It is not only an inverter but also contains a powerful intelligent charger. It provides pure sine wave power to all kinds of loads. And it can be used as UPS for computers as well.
Features
ø DSP digital control technologychnologychnology
ø Pure sine wave outpute outpute output
ø Suitable for all kinds of loads, such as resistive, inductive and rectified loads and motorsd motorsd motors
ø Use of pulse by pulse technology, improving load shock ability ability ability
ø Charge current Max. 60A. Settable charge current and charge voltage on front panelnt panelnt panel
ø Settable no-load shutdown and energy saving modeing modeing mode
ø Short circuit, overload and low battery protectionotectionotection
ø Intelligent long backup time up to 10hrs (based on battery bank and loads)d loads)d loads)
ø Compatible with generators and matching of inverter and generator is settablesettablesettable
ø Usable as off-grid solar inverter combined with EAST charge controllerntrollerntroller
Technical Data:
Features
ø DSP digital control technologychnologychnology
ø Pure sine wave outpute outpute output
ø Suitable for all kinds of loads, such as resistive, inductive and rectified loads and motorsd motorsd motors
ø Use of pulse by pulse technology, improving load shock ability ability ability
ø Charge current Max. 60A. Settable charge current and charge voltage on front panelnt panelnt panel
ø Settable no-load shutdown and energy saving modeing modeing mode
ø Short circuit, overload and low battery protectionotectionotection
ø Intelligent long backup time up to 10hrs (based on battery bank and loads)d loads)d loads)
ø Compatible with generators and matching of inverter and generator is settablesettablesettable
ø Usable as off-grid solar inverter combined with EAST charge controllerntrollerntroller
Technical Data:
| MODEL | 300 W | 600 W | 1000 W | 1600 W | 2500 W | 3500 W | |
| DC INPUT | |||||||
| Nominal input voltage | 12 V | 24 V | |||||
| DC input voltage range | 10 ~ 15 V | 20 ~ 30 V | |||||
| AC INPUT | |||||||
| Bypass voltage | 0 ~ 264 Vac / 276 Vac / 288 Vac ± 10 Vac for 220 Vac / 230 Vac / 240 Vac 240 Vac 240 Vac | ||||||
| AC voltage | 150 ~ 282 Vac for 220 Vac,156 ~ 294 Vac for 230 Vac,163 ~ 307 Vac for 240 Vac | ||||||
| Frequency | 50 Hz / 60 Hz (auto-sense), 45 ~ 55 Hz for 50 Hz, 55 ~ 65 Hz for 60 Hz | ||||||
| Input voltage of generator | 99 ~ 282 Vac for 220 Vac,104 ~ 294 Vac for 230 Vac,108 ~ 307 Vac for 240 Vac | ||||||
| Input frequency of generator | 40 ~ 70 Hz | ||||||
| Input power limitation | Rated power 10% ~ 150%, regulating step 10% | ||||||
| OUTPUT | |||||||
| DC mode output voltage | 220 V / 230 V / 240 Vac ± 5%usmn; 5%usmn; 5% | ||||||
| AC mode output voltage | 174 ~ 242 Vac for 220 Vac,182 ~ 253 Vac for 230 Vac, 190 ~ 264 Vac for 240 Vac | ||||||
| Nominal output frequency | 50 Hz / 60 Hz ± 0.3 (auto-sense & settable)p; settable)p; settable) | ||||||
| Output waveform | Pure sine wave | ||||||
| Output power | 300 W | 600 W | 1000 W | 1600 W | 2500 W | 3500 W | |
| Efficiency | Max. 95% (mains mode); Max. 80% (inverter mode) | ||||||
| ECO mode | Settable (< 3% load) to enter in 80 s80 s | ||||||
| No-load shutdown | Settable (< 3% load) shutdown in 80 s80 s | ||||||
| Transfer time | ≤ 10 ms0 ms0 ms | ≤ 15 ms5 ms5 ms | |||||
| Power factor | 1.0 | ||||||
| THD | < 5% (linear load)oad) | ||||||
| Overload | Mains mode: 110% for 120 s, 125% for 60 s, 150% for 10 s (switch to bypass) Inverter mode: 110% for 60 s; 125% for 10 s; 150% for 10 s (shut down) | ||||||
| BATTERIES | |||||||
| Charging current (selectable) | Max. 15 A | Max. 30 A | Max. 40 A | Max. 40 A | Max. 50 A | Max. 60 A | |
| Equalizing charge voltage | Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable | ||||||
| Floating charge voltage | Single battery 13.5 Vdc (default), 13.2 ~ 14.6 Vdc adjustable | ||||||
| Charge mode | 3 stage charge mode | ||||||
| EOD | Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable | ||||||
| Reverse warning | Buzzer | ||||||
| OTHERS | |||||||
| Human-machine interface | LCD& BUZZERUZZERUZZER | ||||||
| Operating temperature | 0ºC ~ 40ºC~ 40ºCrdm;C~ 40ºC | ||||||
| Operating humidity | 5% ~ 95%RH | ||||||
| Forced air cooling | Variable speed fans | ||||||
| Net weight (kg) | 8.3 | 11.3 | 14.0 | 20.2 | 32.0 | 36.0 | |
| Gross weight (kg) | 9.3 | 12.3 | 15.0 | 21.2 | 34.0 | 38.0 | |
| Dimensions (W×D×H) (mm)times;H) (mm)times;H) (mm) | 280×258×120258×120es;120258×120 | 293×280×160280×160es;160280×160 | 302×479×209479×209es;209479×209 | ||||
| Packaged dimensions (W×D×H) (mm)times;H) (mm)times;H) (mm) | 330×352×200352×200es;200352×200 | 370×355×235355×235es;235355×235 | 353×582×287582×287es;287582×287 | ||||
