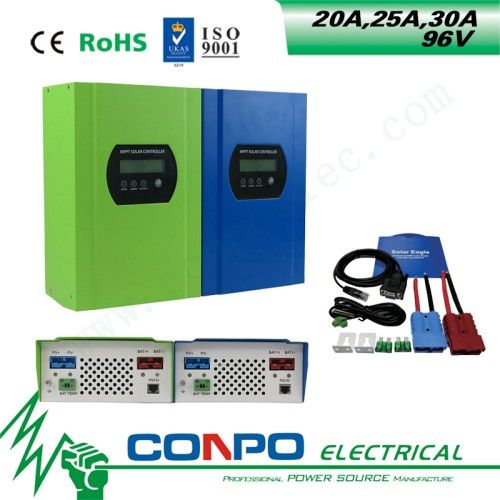

20A, 25A & 30A, 96V, MPPT Solar Controller

bargain

Model NO.	SMART1-20A, 25A & 30A, 96V, MPPT, MPPT MPPT
Certification	BV, ISO, CE, RoHS
Rated Voltage	96V
Specification	SMART1-20A, 25A & 30A, 96V, MPPT, MPPT MPPT
HS Code	85371090
Condition	New
Application	Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station
Trademark	CONPO
Origin	Nanjing, China

Overview
Smar1 series is the first generation of MPPT solar charge controller. Its advantages is including high conversion efficiency, system automatic recognize, wide range of PV input, professional PC monitoring software etc. This is the most classic version of MPPT solar charge controller.
Feature

1. MPPT charge mode, peak efficiency up to 99%

2. 96V system maximum solar input is DC300V

3. The controller can be upgraded online

4. Connected battery type choosing: Seal Lead Acid, Vented, GEL, NICD battery. Other can be upgraded online

5. LCD and LED show various parameters

6. RS232 communication and protocol can be provided

7. Controllers can be connected in unlimited parallels

Parameter

Model			SMART1-96V-20A	SMART1-96V-25A		SMART1-96V-30A
Rated Charge Current			20A	25A		30A
System Voltage			96V
Charge Mode			MPPT(Maximum Power Point Tracking)
Charge Method			3stages: fast charge(MPPT), constant voltage, floating charge
Conversion Efficiency			96.5%~99%
Input Characteristics
MPPT Working Voltage and Range	96V System		DC120~DC300V
Max. PV Voltage	96V System		300V
Max. PV Power	96V System		2240W	2800W		3400W
Charge Characteristics
Selectable Battery Types		96V System	Sealed Lead Acid Vented, GEL, NICD Battery (Other types of the batteries also can be defined)
Rated Input Current		96V System	20A		25A		30A
Physical
PC(communication port)			RS232
Measurement DxWxH(mm)			27018590
N.W.(kg)			3
G.W.(kg)			4
Color			Blue/Green(Optional)
The specification is only for reference. Subject to change without prior notice. We provide OEM and ODM service.
