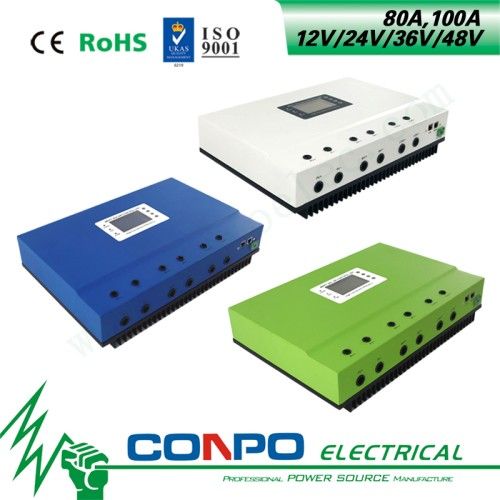

80A, 100A 12V/24V/36V/48V, MPPT Solar Controller
bargain
add to cart| Model NO. | MASTER1-80A, 100A 12V/24V/36V/48V, MPPT |
| Certification | BV, ISO, CE, RoHS |
| Rated Voltage | 12V/24V/36V/48V Auto. |
| Specification | MASTER1-80A, 100A 12V/24V/36V/48V, MPPT |
| HS Code | 85371090 |
| Condition | New |
| Application | Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station |
| Trademark | CONPO |
| Origin | Nanjing, China |
Overview
This is a Maximum Power Point Tracking(MPPT) function with high efficiency MPPT charge controller. It has many advantages such as self cooling system, Voltage Automatic Recognition, wide range of PV input, charge for all kinds of batteries, intelligent discharge control, RS232/LAN communication function etc. It is the most high-end product in solar market.
Feature
This is a Maximum Power Point Tracking(MPPT) function with high efficiency MPPT charge controller. It has many advantages such as self cooling system, Voltage Automatic Recognition, wide range of PV input, charge for all kinds of batteries, intelligent discharge control, RS232/LAN communication function etc. It is the most high-end product in solar market.
Feature
1. MPPT charge mode, conversion efficiency up to 99%
2. Maximum PV input voltage up to DC150V
3. LED and LCD display show various parameters
4. Discharge mode: ON/OFF mode, double time control mode, PV voltage control mode, PV voltage + time delay mode
5. RS232 and LAN communication port
6. Controllers can be connected in Unlimited parallels
7.Protection Function: Input low voltage protection, Input overvoltage protection, Input the reverse polarity protection, Output overvoltage protection, Output the reverse polarity protection, Temperature protection, Temperature rise protection
Parameter | Model | MASTER1-80A | MASTER1-100 | |
| Rated Charge Current | 80A | 100A | |
| System Voltage | DC12V/24V/36V/48V Automatic Recognition | ||
| Charge Mode | MPPT(Maximum Power Point Tracking) | ||
| Charge Method | 3stages: fast charge(MPPT), constant voltage, floating charge | ||
| Conversion Efficiency | 96.5%~99% | ||
| Input Characteristics | |||
| MPPT Working Voltage and Range | 12V system | DC16V~DC150V | |
| 24V system | DC30V~DC150V | ||
| 36V system | DC45V~DC150V | ||
| 48V system | DC60V~DC150V | ||
| High Input Voltage Protection Point | DC12V/24V/36V/48V | 150V | |
| Rated Charge Current | DC12V/24V/36V/48V | 80A | 100A |
| Max. PV Power | 12V system | 960W | 1200W |
| 24V system | 1920W | 2400W | |
| 36V system | 2880W | 3600W | |
| 48V system | 3840W | 4800W | |
| Charge Characteristics | |||
| Selectable Battery Types (Default type is GEL battery) | DC12V/24V/36V/48V | Sealed Lead Acid, Vented, GEL, NICD Battery (Other types of the batteries also can be defined) | |
| Output Discharge Characteristics | |||
| Setting Control | Controller , or PC software | ||
| Max Discharge Current | 100A | ||
| Output Control Mode | On mode, Off mode, PV Volt. Control, PV & Time Control, Time Controlntrolntrol | ||
| Physical | |||
| PC(communication port) | RS232 and LAN | ||
| Measurement DxWxH(mm) | 420*280*102 | ||
| Packing DxWxH(mm) | 500*360*195 | ||
| N.W.(kg) | 7.5 | ||
| G.W.(kg) | 8.5 | ||
| The specification is only for reference. Subject to change without prior notice. We provide OEM and ODM service. | |||
