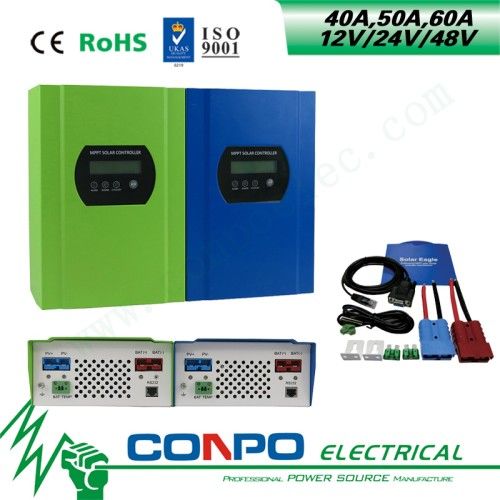

40A, 50A, 60A, 12V/24V/48V, MPPT Solar Controller

bargain

Model NO.	SMART1-40A, 50A, 60A, 12V/24V/48V, MPPT
Certification	BV, ISO, CE, RoHS
Rated Voltage	12V/24V/48V Auto.
Specification	SMART1-40A, 50A, 60A, 12V/24V/48V, MPPT
HS Code	85371090
Condition	New
Application	Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station
Trademark	CONPO
Origin	Nanjing, China

Overview
Smart1 series is the first generation smart MPPT solar charge controller that is one of the important parts in the off-grid solar system. Its advantages are including high conversion efficiency, system automatic recognize, wide range of PV input, professional PC monitoring software etc. This is the most classic version of MPPT solar charge controller.
Feature

1. MPPT charge mode, peak efficiency up to 99%

2. DC12V/24V/48V battery system automatic recognition

3. Maximum PV input voltage up to DC150V

4. The controller can be upgraded online

5. Connected battery type choosing: Sealed Lead Acid, Vented, GEL, NICD battery. Other kinds of batteries an be defined by users

6. LCD and LED show various parameters

7. RS232 communication and protocol can be provided

8. Controllers can be connected in unlimited parallels

Parameter

Model		ESMART1-40A	ESMART1-50A	ESMART1-60A
Rated Charge Current		40A	50A	60A
System Voltage		DC12V/24V/48V Automatic Recognition
Charge Mode		MPPT(Maximum Power Point Tracking)
Charge Method		3stages: fast charge(MPPT), constant voltage, floating charge
Conversion Efficiency		96.5%~99%
Input Characteristics
MPPT Working Voltage and Range	12V system	DC18V~DC150V
	24V system	DC34V~DC150V
	48V system	DC65V~DC150V
Low Input Voltage Protection Point	12V system	DC16V
	24V system	DC30V
	48V system	DC60V
Low Input Voltage Recovery Point	12V system	DC22V
	24V system	DC34V
	48V system	DC65V
High Input Voltage Protection Point	DC12V/24V/48V	DC150V
Maximum PV Power	12V system	570W	700W	900W
	24V system	1130W	1400W	1700W
	48V system	2270W	2800W	3400W
Charge Characteristics
Selectable Battery Types (Default type is GEL battery)	DC12V/24V/48V	Sealed Lead Acid Vented, GEL, NICD Battery (Other types of the batteries also can be defined)
Rated Input Current	DC12V/24V/48V	40A	50A	60A
Physical
PC(communication port)		RS232
Measurement DxWxH(mm)		27018590
N.W.(kg)		3
G.W.(kg)		4
Color		Blue/Green(Optional)
The specification is only for reference. Subject to change without prior notice. We provide OEM and ODM service.
