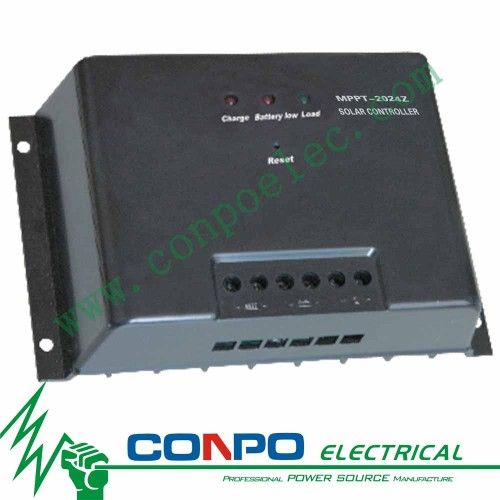

MPPT2024z-20A 20A-12V/24V Auto., LED, MPPT, Smart Solar Controller
bargain
add to cart| Model NO. | MPPT2024Z |
| Rated Voltage | 12V/24V Auto. |
| Specification | 20A-12V/24V auto., LED, MPPT Solar Controller |
| HS Code | 9032899090 |
| Application | Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller |
| Trademark | CONPO |
| Origin | Nanjing, China |
Application:
The most important feature of this MPPT Solar Controller is intelligent tracking input voltage from Solar Panel, which could let Solar Panel always working at Maximum Power Point of V-A curve. Compared with normal Solar Charge Controller, this MPPT Solar Controller could increase 10%-30% electrical power using efficiency from Solar Panel.
Features:
1. Maximum power point tracking
2. Battery reversed connection protection
3. Anti-battery reverse discharge
4. Anti-solar panels reverse connection
5. Panel over voltage protection
6. Three-stage charge control
7. Float charging voltage adjustable
8. Temperature compensation for float charging voltage
9. Elevating charging voltage adjustable
10. Solar panel input deviated from maximum power point
11. Internal overheating protection
12. Temperature controlling fan
Technical Data:
Packing Details:
The most important feature of this MPPT Solar Controller is intelligent tracking input voltage from Solar Panel, which could let Solar Panel always working at Maximum Power Point of V-A curve. Compared with normal Solar Charge Controller, this MPPT Solar Controller could increase 10%-30% electrical power using efficiency from Solar Panel.
Features:
1. Maximum power point tracking
2. Battery reversed connection protection
3. Anti-battery reverse discharge
4. Anti-solar panels reverse connection
5. Panel over voltage protection
6. Three-stage charge control
7. Float charging voltage adjustable
8. Temperature compensation for float charging voltage
9. Elevating charging voltage adjustable
10. Solar panel input deviated from maximum power point
11. Internal overheating protection
12. Temperature controlling fan
Technical Data:
| Model | MPPT1024Z | MPPT2024Z | EMPPT3024Z | EMPPT6024Z | EMPPT3048 | EMPPT6048 |
| Maximum PV voltage | ≤70V;70V;70V | ≤130V130V130V | ||||
| MPPT voltage range | 12V-70V(12V)/24V-70V(24V) | 48V-130V | ||||
| System voltage | 12V/24V auto. | 48V | ||||
| Maximum charging current | 10A | 20A | 30A | 60A | 30A | 60A |
| No load loss | ≤15mA15mA15mA | ≤45mA45mA45mA | ≤50mA50mA50mA | ≤45mA45mA45mA | ≤50mA50mA50mA | |
| Charging control mode | 3 stage(bulk, absorption, float) | |||||
| Float charging voltage | 13.8V/27.6V | 13.8V/27.6V(adjustable) | 55.2V(adjustable) | |||
| Absorption voltage | 14.4V/28.8V(for 2hours) | 14.4V/28.8V(adjustable) | 57.6V | |||
| Temperature compensation | -4Mv/cell/ºCordm;Cordm;C | |||||
| Battery type | Lead acid(GEL, AGM, Flooded) | |||||
| Maximum efficiency | 97% | |||||
| Human interface | LED display, button | LCD display, button | ||||
| Cooling style | Passive cooling | Thermostal active cooling | ||||
| Ambient temperature range | -10-50ºCordm;Cordm;C | |||||
| Humidity | 0-90%, no condensation | |||||
Packing Details:
| Model | Main. Specifications | Packing Size | Qty. per Ctn | N.w./G.w. per Ctn |
| MPPT1024Z | 10A, 12V/24V Auto. LED, MPPT Smart Solar Controller | 43.8*32.5*28.4cm | 24pcs | 12.5kg/15.3kg |
| MPPT2024Z | 20A, 12V/24V Auto. LED, MPPT Smart Solar Controller | 43.8*32.5*28.4 | 20pcs | 12kg/14.9kg |
| EMPPT3024Z | 30A, 12V/24V Auto. LCD, MPPT Smart Solar Controller | 43.8*43*44cm | 10PCS | 33KG/35KG |
| EMPPT6024Z | 60A, 12V/24V Auto. LCD, MPPT Smart Solar Controller | 43.8*43*44cm | 5pcs | 28kg/30kg |
| EMPPT3048 | 30A/48V, LCD, MPPT, Smart Solar Controller | 43.8*43*44cm | 10PCS | 33KG/35KG |
| EMPPT6048 | 60A/48V, LCD, MPPT, Smart Solar Controller | 43.8*43*44cm | 5pcs | 28kg/30kg |
| Note: 1. 'Z' represent automatic identify system voltage levelltage level 2. MPPT means Maximum Power Point Tracking | ||||
