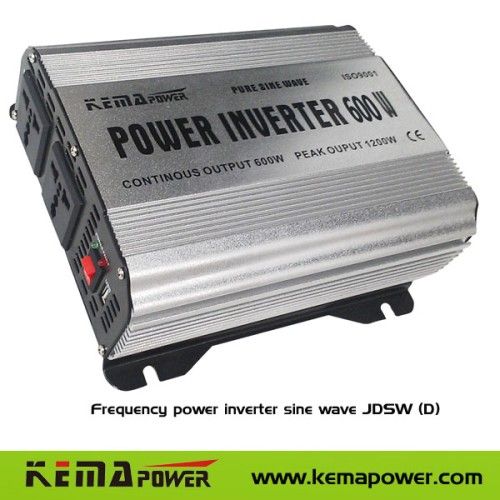

High Frequency Power Inverter (JDSW 300-1500W)

bargain

Model NO.	JDSW 300-1500W
Output Type	Single
Main Circuit Type	Voltage
Specification	High Frequency Power Inverter (JDSW 300-1500W)
Application	High-performance Transducer, General Transducer
Switch Mode	PWM Control
Trademark	Kemapower
Origin	China

1 Pure sine wave high frequency design
2 Small and light, high efficiency
3 Lower static current
4 Full protection for over temperature, over load and short circuit
5 With USB port
6 LED or digital display and alarm
7 Aluminous case
8 Fan cooling
9Use for off grid solar power system and the others.

Model	JDSW300 (D)	JDSW600 (D)	JDSW1200 (D)	JDSW1500 (D)
DC Input Range	12/24VDC	12/24VDC	12/24VDC	12/24VDC
DC Input Range	11V-15VDC or 11-30VDC	11V-15VDC or 11-30VDC	11V-15VDC or 11-30VDC	11V-15VDC or 11-30VDC
Output Capacity	300W	600W	1200W	1500W
Surge Capacity	2 Times	2 Times	2 Times	2 Times
Static Current	0.7A	0. 85 A	0.9 A	0.95A
Thd	≤ 5 % 5 % 5 %
Efficiency(Full Load )	≥ 85 %85 %85 %
Max Efficiency	≥ 90 %90 %90 %
Output Voltage(NO Load )	110V or 220V
Output Frequency	50 or 60HZ±0.5HZmn;0.5HZmn;0.5HZ
USB Output	5V 500Ma
Battery Low Alarm	10.2V-10.8V or 20.4V-21.6V
Battery Low Cut Point	9.2V-9.8V or18.4V-19.6V
Resume Voltage	11.7V-12.3V or 23.4V-24.6V
Shut Off Voltage At Over-Voltage	15.0V-16.0V or 30V-32V
Over Load Protection	Yes
OverCurrent Protection	Yes
Short Cuicurt	Yes
Over Temp. Protection	Yes
Led Display	Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D
Digital display	AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only
