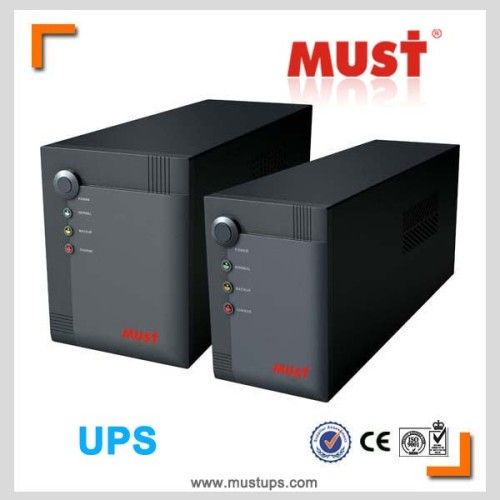

Computer Line Interactive 650va UPS with RS232 Communicate Port
| Model NO. | EW2000 |
| Type | Line Interactive |
| Application | Communication |
| Standby Time | Standard Machine |
| Brand | Must/OEM |
| Frequency | 50Hz or 60Hz |
| Input Range | 150-290VAC |
| Output Wave | Modified Sine Wave |
| Specification | CE |
| HS Code | 8504401400 |
| Phase | Single Phase |
| Protection | Unbalanced Loads |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Capacity | 500va to 1500va |
| Output Waveform | Modified Sinewave |
| Battery | Lead Acid Free Battery |
| Trademark | Must |
| Origin | China |
Computer Line Interactive 650va UPS with RS232 communicate port
.Features:
1. CPU controlled UPS, suitable for any terminal users
2. USB port to offer monitoring
3. Function of automatically switching on or off
4. UPS can be achieved by setting the software of USB
5. Automatic Voltage Regulation with wide input voltage 145 to 285V AC
6. Provided with overload, short circuit, over voltage and under voltage protections
7. Alarm warning system for overload and under voltage
8. Automatic charging
9. Multiple - outlets available
.Features:
1. CPU controlled UPS, suitable for any terminal users
2. USB port to offer monitoring
3. Function of automatically switching on or off
4. UPS can be achieved by setting the software of USB
5. Automatic Voltage Regulation with wide input voltage 145 to 285V AC
6. Provided with overload, short circuit, over voltage and under voltage protections
7. Alarm warning system for overload and under voltage
8. Automatic charging
9. Multiple - outlets available
Model | W500VA | W600VA | W650VA | W800VA | W1000VA | W1200VA | W1500VA | ||
| Rated power(VA) | 500VA | 600VA | 650VA | 800VA | 1000VA | 1200VA | 1500VA | ||
| Rated power(W) | 300W | 360W | 390W | 450W | 600W | 700W | 900W | ||
| AC Input | Rated voltage | 110/115/120VA or 220/230/240V AC | |||||||
| Voltage range | 85-150V AC/145VAC-280VAC | ||||||||
| Output | Wave-form under battery | Modified sine wave | |||||||
| Voltage Battery mode | ±10% ( auto-sensing )ensing )ensing ) | ||||||||
| Transfer time | Typical 10ms | ||||||||
| Protection | Spike protection | 320joules, 2ms | |||||||
| Filter | 10dB at 0.15MHz , 50dB at30Hz | ||||||||
| Overload | UPS automatic shutdown if overload exceeds 110% of normal value for 30 seconds and 130% for 3 seconds | ||||||||
| Short circuit | UPS output is cut off immediately or input circuit breaker protection | ||||||||
| Alarm | Battery back-up | Beeping sound every 4 seconds | |||||||
| Battery low voltage | Beeping sound every 1 seconds | ||||||||
| Overload | Continuous beeping sound | ||||||||
| Battery | Type | Sealed maintenance-free lead acid | |||||||
| Capacity | 1*7ah/12v | 1*7ah/12v | 1*7ah/12v | 1*9ah/12v | 2*7ah/12 | 2*7ah/12 | 2*7ah/12 | ||
| Recharge time | 8 hours to 90% of full capacity | ||||||||
| Back-up time | Typical 15 min ( half ) | ||||||||
| Physical | Net weight (kgs) | 4.5 | 4.5 | 4.5 | 4.7 | 9.5 | 9.5 | 9.5 | |
| Body size(L*W*H)(mm) | 305 *85*140 | 350 * 120 *188 | |||||||
| Inner box size(mm) | 365 *130*210 | 405*195*288 | |||||||
| master carton(mm) | 380*278*440(4pcs/master carton) | 420*410*303(2pcs/master) | |||||||
| GWNW(kgs): | 22.5/20KGS | 21/20kgs | |||||||
| Loading | 20 ft | 2340 pcs | 1000pcs | ||||||
| 40 ft | 4800 pcs | 2050pcs | |||||||
