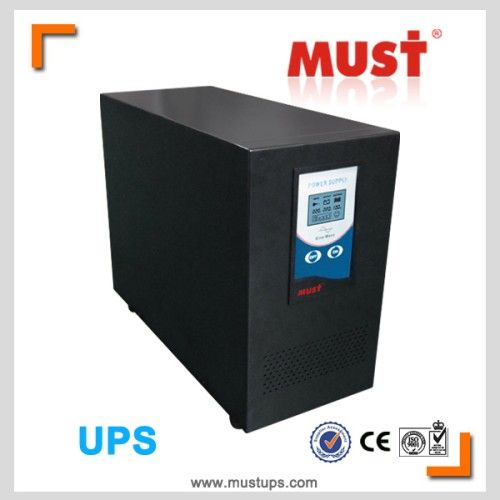

Sine Wave Home UPS Line Interactive 1500va UPS Power
| Model NO. | EW2150 |
| Type | Line Interactive |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Medium Type |
| Brand | Must or OEM |
| Input AC Voltage Tolerance | Nominal AC Voltage 110VAC or 220VAC 25% Tolerance |
| Communication Port | RS232 |
| Specification | 500va-6kva |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | AC Voltage Fluctuation, Over-Load,Over-Temperature |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Decentralized |
| Wave Form | Pure Sine Wave |
| AC Voltage Regulation | Auto-Transformer |
| Trademark | Must |
| Origin | Shenzhen, China |
Sine Wave Home UPS Line Interactive 1500va UPS POWER
Optional shape:
500va-300w to 1500va-1000w: Rack-mount of 80mm height
500va-300w to 6kva-4.2kw: Tower
Internal or external battery installation
Feature:
1. CPU control guarrantees reliable power protection;
2. PWM tech inverter performs stable pure sine wave output voltage from internal or external batteries;
3. Auto-transformer for ac voltage regulation (25% tolerance), protects battery well, solve ac-brownout;
4, 25amp charger assures fast charge;
5.3-stage charge control
6. Over-charge, over-dsicharge protection;
7. Over-load, over-temperature, short-circuit protection(output)
8. RS232 for communication and power management.
9. Lcd Led and audible alarm design.
Optional shape:
500va-300w to 1500va-1000w: Rack-mount of 80mm height
500va-300w to 6kva-4.2kw: Tower
Internal or external battery installation
Feature:
1. CPU control guarrantees reliable power protection;
2. PWM tech inverter performs stable pure sine wave output voltage from internal or external batteries;
3. Auto-transformer for ac voltage regulation (25% tolerance), protects battery well, solve ac-brownout;
4, 25amp charger assures fast charge;
5.3-stage charge control
6. Over-charge, over-dsicharge protection;
7. Over-load, over-temperature, short-circuit protection(output)
8. RS232 for communication and power management.
9. Lcd Led and audible alarm design.
| MODEL | EW2150 1KM/S | EW2150 2KM/S | EW2150 3KM/S | EW2150 5KS | EW2150 6KS |
| CAPACITY | 1KVA /700W | 2KVA /1400W | 3KVA /2100W | 5KVA /3500W | 6KVA /4200W |
| INPUT | |||||
| Voltage | 100/110/120/127/220/230(± 25%) VAC25%) VAC25%) VAC | ||||
| Voltage Range | 81-145 VAC / 162-290 VAC | ||||
| Frequency Range | 60/50 ± 10% Hz (auto sensing)sensing)sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation | ±10%usmn;10%usmn;10% | ||||
| Frequency Range | 60 Hz or 50 Hz ±1 Hzsmn;1 Hzsmn;1 Hz | ||||
| Transfer Time | Typical 2-6 ms, 10ms max. | ||||
| Waveform (Batt. Mode) | Sine Wave | ||||
| BATTERY | |||||
| Battery Type & Numberumberumber | 12 V/7 AH x 2 | 12 V/12 AH x 2 | 12 V/12 AH x 2 | 12 V/17 AH x 4 | 12 V/17 AH x 4 |
| Recharge Current | Long back up model:max 15A Standard model:max 3A | ||||
| INDICATORS | |||||
| LCD/LED | Optional | ||||
| PROTECTION | |||||
| Overload | shut dowm if overload exceeds 120% /normal value for 30 seconds | ||||
| Short circuit | Cut off immediately or input circuit breaker protection | ||||
| ALARM | |||||
| Battery back-up | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Audible alarm | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| M Dimension, D X W X H (mm) | 375 x 130 x 190 | 452*192*338(2kva-3kva);500*260*455(5kva-6kva) | |||
| M Net Weight (kgs) | 12.0 | 21 | 25 | 29.5 | 33.7 |
| S Dimension, D X W X H (mm) | 375 x 130 x 190 | 452*192*338 | |||
| S Net Weight (kgs) | 9.6 | 17.0 | 23.7 | 27 | 37.3 |
| OPERATING ENVIRONMENT | |||||
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing)sing)sing) | ||||
| Noise Level | Less than 45dB | ||||
| MANAGEMENT | |||||
| Optional USB/RS-232 Port | Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC, and MAC, and MAC | ||||
