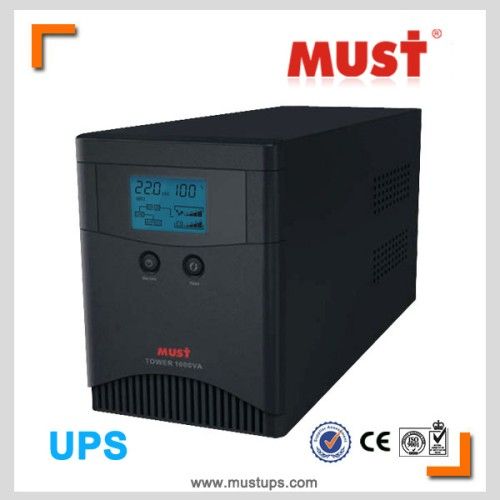

1500va Line Interactive UPS for Power Supply

1500va Line Interactive UPS for Power Supply

1+
31 USD
10+
29 USD

add to cart
Model NO. 1500va-1050w(EW2150)
Type Line Interactive
Application Communication
Standby Time Standard Machine
Output Capacity Medium Type
Brand Must
Input AC Voltage Tolerance Nominal AC Voltage 110VAC or 220VAC 25% Tolerance
Communication Port RS232
Specification 500va-6kva
HS Code 8504402000
Phase Single Phase
Protection AC Voltage Fluctuation, Over-Load,Over-Temperature
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Decentralized
Topology Smart Line Interactive
AC Voltage Regulation Auto-Transformer
Trademark Must
Origin Shenzhen, China
Rack mount ups interactive 1500va equiped auto-transformer
Optional shape:
500va-300w to 1500va-1000w: Rack-mount of 80mm height
500va-300w to 6kva-4.2kw: Tower
Internal or external battery installation
Feature:
1. CPU control guarrantees reliable power protection;
2. PWM tech inverter performs stable pure sine wave output voltage from internal or external batteries;
3. Auto-transformer for ac voltage regulation (25% tolerance), protects battery well, solve ac-brownout;
4, 25amp charger assures fast charge;
5.3-stage charge control
6. Over-charge, over-dsicharge protection;
7. Over-load, over-temperature, short-circuit protection(output)
8. RS232 for communication and power management.
9. Lcd Led and audible alarm design.
MODEL EW2150 1KM/S EW2150 2KM/S EW2150 3KM/S EW2150 5KS EW2150 6KS
CAPACITY 1KVA /700W 2KVA /1400W 3KVA /2100W 5KVA /3500W 6KVA /4200W
INPUT
Voltage 100/110/120/127/220/230(± 25%) VAC25%) VAC25%) VAC
Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 60/50 ± 10% Hz (auto sensing)sensing)sensing)
OUTPUT
AC Voltage Regulation ±10%usmn;10%usmn;10%
Frequency Range 60 Hz or 50 Hz ±1 Hzsmn;1 Hzsmn;1 Hz
Transfer Time Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) Sine Wave
BATTERY
Battery Type & Numberumberumber 12 V/7 AH x 2 12 V/12 AH x 2 12 V/12 AH x 2 12 V/17 AH x 4 12 V/17 AH x 4
Recharge Current Long back up model:max 15A Standard model:max 3A
INDICATORS
LCD/LED Optional
PROTECTION
Overload shut dowm if overload exceeds 120% /normal value for 30 seconds
Short circuit Cut off immediately or input circuit breaker protection
ALARM
Battery back-up Sounding every 4 seconds
Low Battery Sounding every second
Overload Audible alarm
Fault Continuously sounding
PHYSICAL
M Dimension, D X W X H (mm) 375 x 130 x 190 452*192*338(2kva-3kva);500*260*455(5kva-6kva)
M Net Weight (kgs) 12.0 21 25 29.5 33.7
S Dimension, D X W X H (mm) 375 x 130 x 190 452*192*338
S Net Weight (kgs) 9.6 17.0 23.7 27 37.3
OPERATING ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)sing)sing)
Noise Level Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC, and MAC, and MAC
