Powersys 48V4KW
Modular Power Supply Unit – 1U up to4KWp to4KWp to4KW
Product Description
The Powersys system has been specifically designed to meet any requirement in terms of power functionality and cost. Realization of Powersys systems is possible by fitting up to 2 rectifiers across 1U shelf including controller and distribution.
The Powersys system is a compact power system containing a Monitoring and Control Unit (GM610B), LVD, battery and load MCBs. Switch mode technology with resonant topology and high switching frequency is used to minimize volume and weight and to obtain high reliability. The system accepts large variations on the input voltage (85-300 VAC) and draws sinusoidal current with a soft start power-up.
Applications
Wireless, fiber and fixed line communication
Today's communications demand state of the art, cost efficient and compact DC power systems. Powersys delivers power density of 14W/in3 and superb reliability at lowest lifetime cost.
Broadband and network access
Increasing network speed demands flexible and expandable DC power solutions. Powersys is your key building block for future needs.
Key Features
Highest efficiency in minimum space
Resonant topology makes the module efficiency industry leading and contributes to the rectifier's ultra compact dimensions.
Digital controller
Controller is digitalized, enabling excellent monitoring and regulation characteristics. Thus, the number of component has been reduced by 40% - for highly reliable, long life, trouble free DC power systems.
Heat management
Front-to-back air flow with chassis-integrated heat sinks gives the module the most suitable working environment and no limitations in the scalability of the desired system solution.
Unique connection
A true plug-and-play connection system: Time-to-install and cost-reducing solution.
Global approvals
Powersys is CE marked, UL recognized for world wide installation.

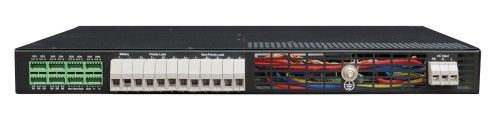

Powersys system 2 position
Additional Technical Specifications
