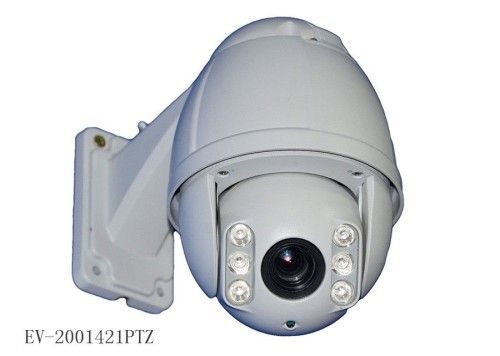

IR 1080P 18X PTZ Dome CCTV Camera Lux 0.01, Hidden CCTV Cameras for Shops
bargain
add to cart| Model NO. | EV-2001421PTZ |
| Style | Zoom Lens |
| Sensor | CMOS |
| Horizontal Resolution | 1920*1080 |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Remote Control | Without Remote Control |
| Specification | 2.5kg |
| HS Code | 8525801390 |
| Technology | Infrared |
| Type | CCTV Camera |
| HDMI Format | 1080P |
| Kind | Fixed Lens |
| Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
| Sensor Size | 1/3 inch |
| Trademark | EYEVISON |
| Origin | Shenzhen China |
IR 1080P 18X PTZ Dome CCTV Camera Lux 0.01 , Hidden CCTV Cameras for shops
Quick Detail:
1. 4.5' Total Metal body construction, IP66 rate protectiontection
2. 1/3' CMOS, 2.0 Megapixels, 18X optical zooml zoom
3. HD-IP digital interface output, 1080P high definition image
4. OSD menu available
5. PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factoractoractor
6. IR distance 50M
Description:
You can use the camera for indoor and outdoor environment,for example: Factory, Busienss building, Office, School,Metro,Bank, Ship, Street road. you can monitor more important space from the camera, it will recording and playback the importand video with NVR.
Specification:
Camera | |
| Sensor | 1/3' progressive scan CMOSn CMOS |
| Effective pixels | 1080P(1080X1920) |
| Total pixels | 2.0 Megapixels |
| Output Pixel | 1920*1080@30fps1920*1080@25fps1280*720@60fps1280*720@50fps |
| Lens | 18X optical zoom f=4.7mm(W) ~ 84.6mm(T) ±5%lusmn;5%lusmn;5% |
| Iris | F1.6 ~F2.8 |
| View of Angle | H:51.8°(W)~5.86°(T) V:39.1°(W)~4.4°(T)g;(W)~4.4°(T);(T)g;(W)~4.4°(T) |
| Min. illumination | Color: 0.01 Lux B/W: 0 Lux |
| D/N | IR-CUT |
| BLC | Auto |
| WB | Auto |
| S/N Ratio | ﹥50dB50dB |
| Dome | |
| Communications Protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP |
| Storage (optional) | One SD/SDHC card |
| Software Control | IE, CMS, Management Platform |
| Mobile View(optional) | Support Windows, Symbian, iPhone platform smartphone |
| Preset Points | 220 |
| Pattern Scan | 4 groups |
| Guard Tours | 4 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Operating temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60°40°~ +60°+60°40°~ +60° |
| Operation menu | Multiple languages for OSD menu, English, Spanish etc |
| Pan and Tilt position display | Support |
| Auto Control IR LED | PWM |
| Support ambient light detection | IR illumination on 1-15 grades selectable; |
| LEDs | 6pcs |
| IR distance | up to 50 meters |
| Support ambient light detection | IR illumination on 1-9 grades selectable; |
| Humidity | ≤95% Non Condensingsingsing |
| Power | AC24V ≤3Ae;3Ae;3A |
| Consumption | < 25W |
| Lightning Protection | Transient voltage 6000V |
| Communication mode | RS485 (+/-) |
| Connection | Coaxial Cable |
| Size/Weight | 2.7KG(N.W),.3.4KG(G.W) |
| Related validation | IP66,CE,FCC,RoHs |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. CE,FCC,RoHS passed
4. Professional technical support
