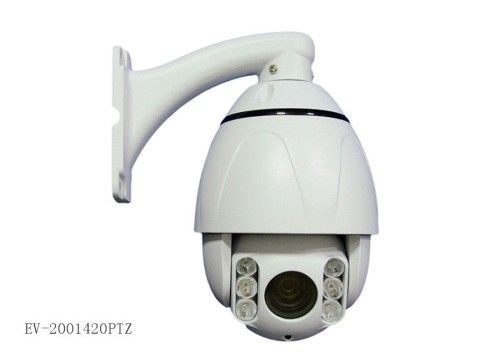

Mini Network PTZ CCTV Camera IP Wireless Support Windows / Symbian
bargain
add to cart| Model NO. | EV-2001420PTZ |
| Style | Zoom Lens |
| Sensor | CMOS |
| Horizontal Resolution | 1920*1080 |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Remote Control | Without Remote Control |
| Transport Package | Paper Packaging |
| Origin | Shenzhen |
| Technology | Infrared |
| Type | CCTV Camera |
| HDMI Format | 1080P |
| Kind | Fixed Lens |
| Feature | Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC |
| Sensor Size | 1/3 inch |
| Trademark | Eyevison |
| Specification | 34*27*15 |
| HS Code | 8525801390 |
Mini Network PTZ CCTV Camera IP Wireless Support Windows / Symbian
Quick Detail:
*4' Total Metal body construction, IP66 rate protectiontection
*1/3' CMOS, 2.0Megapixels, 10X optical zooml zoom
*IR distance 50M
*HD-IP digital interface output, 1080P high definition image
*PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factoractoractor
Description:
1. Support Windows, Symbian, iPhone platform smartphone
2. Support FIRE FOX, Google Chrome and Safari
3. 1 array LEDs for IR
4. Own Client software and IE ActiveX
5. Outdoor use and Waterproof case
Specification:
Camera | |
| Sensor | 1/3' progressive scan CMOSn CMOS |
| Effective pixels | 1080P(1080X1920) |
| Total pixels | 2.0 Megapixels |
| Output Pixel | 1920*1080@30fps1920*1080@25fps1280*720@60fps1280*720@50fps |
| Lens | 10X optical zoom f=5mm(W) ~ 50mm(T) ±5%lusmn;5%lusmn;5% |
| Iris | F1.6 ~F2.8 |
| View of Angle | H:51.8°(W)~5.86°(T) V:39.1°(W)~4.4°(T)g;(W)~4.4°(T);(T)g;(W)~4.4°(T) |
| Min. illumination | Color: 0.01 Lux B/W: 0 Lux |
| D/N | IR-CUT |
| BLC | Auto |
| WB | Auto |
| S/N Ratio | ﹥50dB50dB |
| Dome | |
| Communications Protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP |
| Software Control | IE, CMS, Management Platform |
| Mobile View(optional) | Support Windows, Symbian, iPhone platform smartphone |
| Preset Points | 127 |
| Pattern Scan | 4 groups |
| Guard Tours | 4 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Operating temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60°40°~ +60°+60°40°~ +60° |
| Pan and Tilt position display | Support |
| Auto Control IR LED | PWM |
| Support ambient light detection | IR illumination on 1-15 grades selectable; |
| LED | 6pcs |
| IR distance | up to 50 meters |
| Support ambient light detection | IR illumination on 1-9 grades selectable; |
| Humidity | ≤95% Non Condensingsingsing |
| Power | DC12V ≤4Ae;4Ae;4A |
| Consumption | < 25W |
| Lightning Protection | Transient voltage 6000V |
| Communication mode | RS485 (+/-) |
| Connection | Coaxial Cable |
| Size/Weight | 2.5KG |
| Related validation | IP66,CE,FCC,RoHs |
