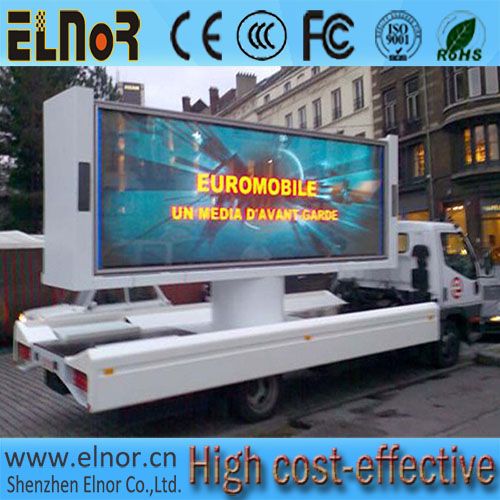

Outdoor Mobile Advertising LED Display Screen Truck

730 USD

Outdoor mobile advertising LED display screen truck,Outdoor Mobile LED Display Advertising Vehicle

Specifications

1Stable capability for advertising truck led display
2Super brightness waterproof shockproof led display
3Good after-sales for Elnor mobile truck led display
4True color reproduction for mobile advertising truck led display
5Ultimate system reliability for vehicle/ trailer led display
6Long life span and stable work
7CE, RoHS, ISO9001 certification
8.9 years experience
9Simple cabinet, easy to assemble, fast-set up

A) 17.2 sqm mobile advertising truck led display. 3.84m x 2.24m x2pcs.
B) Both side of the mobile truck are full color led displays.
C) The size of the waterproof cabinet is 960mm x1120mm, each weight 58kg/pcs.

Main features
1Customized design
2True color reproduction & authentic video quality
3Ultimate system reliability
4Fast set-up, easy service and full control

Advantages
1High brightness and be adjustableBuilt-in functional card support brightness automatically adjustment.
2A turn-key solution including professional sports software and hardware.
3Rich advertising LED display engineering experience both in domestic and oversea market.
4Unbeatable product stability through strict quality control system.

Our service
1Your inquiry related to our products or price will be replied in 24hrs
2Protection of your sales area,ideas of design and all your private information
3Top quality+reasonable price+responsible after service=successful & win

Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC

LED module parameter

Dimensions (w x h)	160mm x 160mm	Resolution (w x h)	16 x 16
Pixel Pitch (mm)	10	Pixel Density	10,000/
Brightness	6000 nits/m2	Scan mode	1/4 scan
Min Viewing distance	10 meters	Max Viewing distance	According to screen area
Pixel Configuration	1R, 1G, 1B	Weight	0.55 kg
Average Power/	300 watts	Max Power/	750 watts

LED display parameter

Elnor Outdoor Mobile/Truck Full Color LED Display/Billboard
Module	Pitch/mm	P10	P16	P20	P25
	Module size/mm	160x160	128x256	320x160	200x200
	Density of pixel/(dots/m2)	10,000	3,906	2,500	1,600
	Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	Led encapsulation	DIP	DIP	DIP	DIP
	Resolution of module	16X16	32X16	32X16	8X8
Main	Optimum viewing distance	≥10	≥15	≥17	≥23
	View angle / °	110 H,60 V	110 H,60 V	110 H,60 V	110 H,60 V
	Average power consumption/W/M2	300	300	350	400
	Max power consumption/W/M2	750	600	850	650
	Size of cabinet/mm	960X960	1024X768	1280X960	1000x1000
	Resolution of cabinet	96X96	64x48	64X48	40X40
	Weight of cabinet/kg	58	60	65	80
	Driving method	1/4 scan constant current	Static constant current	Static constant current	Static constant current
	Frame frequency / Hz/S	≥60	≥60	≥60	≥60
	Refresh rate Hz/S	≥600	≥600	≥600	≥600
	Luminance of white balance	≥7000 nits	≥6500 nits	≥6000 nits	≥5500 nits
	Operation of Environmental Temperature/°C	below 30 to above 50
	IP rating	IP65
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	﹥50,00h
	Life span	﹥100,000h
	Functionaless dot rate	﹤0.0001

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

The led advertising trucks we manufacture can be with one side led screen, two side led screens, three side led screens. Please tell me your requirement before asking the price. We will customize the trucks according to your requirement!
