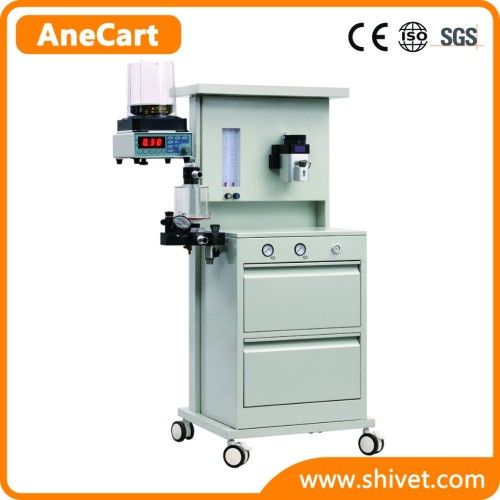

Veterinary Anesthesia Machine (AneCart)

bargain

Model NO.	AneCart
for Animal	Pets
Trademark	SHINOVA
Origin	China
Type	Veterinary Anesthesia Machine
Function	Veterinary Anesthesia
Specification	ISO, CE
HS Code	90200000

Veterinary Anesthesia Machine(AneCart)
Model: AneCart
Special Feature
Driven mode: Pneumatically driven electronically controlled
Mode: Semi-open, Semi-closed or closed system
Anesthetic vaporizer: One vaporizer
Anesthesia Ventilator
Display: High light LED display
Ventilation mode: IPPV and Manual mode
Tidal Volume: 50 ~ 1600ml
Breath frequency: 1 ~ 90BPM
I: E ratio: 4: 1 ~ 1: 6
Monitor parameter: Tidal volume, breath frequency, MV, Airway pressure
Alarm: MV high alarm, MV low alarm, TV high alarm, TV low alarm
Main Unit
Circle absorber: Compact circle absorber
Bellow: 50 ~ 1600ml
Oxygen FLUSH: 25L/min ~ 75L/min
Flow meter:
O2, N2O two-tube flowmeter
O2 tube: 0L/min ~ 10L/min
N2O tube: 0L/min ~ 10L/min
O2 and N2O linkage device
Adjust O2 and N2O in proportion ( keep O2 concentration not lower than 25% )
Gas source pressure
O2: 0.25 ~ 0.65Mpa
N2O: 0.25~ 0.65Mpa
Gauge: 2 units, one N2O, one O2
