Products Information:

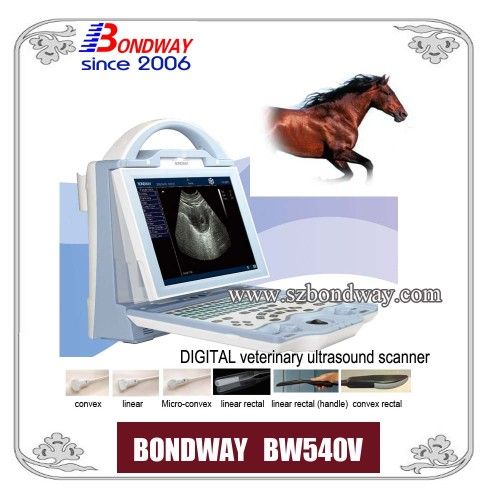

Item No.: BW540V
This system is ideal for large animal veterinarian who need high-resolution ultrasound images, and need it to be one rechargeable battery operated machine
Application
*Equine -Reproduction, Tendon & Abdominal, Cardiac, Breeding, etc. etc. etc.
*Farm Animal -Reproduction imaging on Bovine, Swine, Ovine, Canine, Feline and other animals
*Small animal -Criticare, Abdominal, Cardiac, etc
Benefits
1) Net weight 4.5kg, compact and light-weight for easy handcarry
2) Rechargeable Battery, 4400mAh
3)10.4' high resolution, high contrast LED Display,splay,
4) 4G hard drive for saving up to5000 images
5) Freeze image switch with free hand
6) One-key operation: one-key storage, one-key review, one-key print and one-key image transfer
7) Built-in Powerful Network workstation for an easier data and report control and management
8) Varous veterinary measurement: Normal, OB, Cardio and others
Technical Parameters:
*10.4' high resolution color LED backlight display, with high contrast and wide viewing angle;
*Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
*Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
*Two probe sockets, auto-identify different optional probe;
*Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position
*Display mode:B,2B,4B ,B/M,M ;
*Adjustable depth: 10 grades, max depth to 236mm;
*Gain:0~127dB;
*Contrast:27~90dB;
*Gray scale:256;
*8 steps intelligent TGC;
*8 kinds pseudo colors;
*Image storage: 4G hard disk to permanently store about 5000 frames images;
*Cine loop:256 frames;
*Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);ion);ion);
the gravel software package with real-time position line measurement
Various Measurements:
*Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
*Cardio measurement: Depth, slope, heart rate, cycle;
*OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth;
*Other measurement: pig's meat factor measurement;
*OB report function;
*One-key store: concise and practical;
*One-key review:fast, practical image review function;
*One-key Print;
*One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
*Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don't need to invest more to buy extra ultrasound working station);ion);ion);
*Unique One-key-light keyboard function for dark room use;
*Display brightness adjustable;
*Dual TV output: PAL/NTSC, can connect video printer when necessary;
*Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz;
*Power supply adaptor output:DC12.8V 3.0A;
*Main unit weight:4.5kg(without accessories);
*Main unit dimension:256×150×326mm(L×W×H);326mm(L×W×H);;W×H);326mm(L×W×H);

Standard configuration:
Main unit 1pc;
6.5MHz linear rectal probe 1pc;
Power supply adaptor 1pc;
Reticle 1pc;
Two probe sockets

Optional part
4.0MHz convex rectal probe
6.5MHz micro-convex probe for small animals
3.5MHz linear probe for eye muscle
3.5MHz convex probe
7.5MHz linear probe
Battery charger
Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
trolley
Video printer(UP-897MD)
Ethernet Switch
