12.1" Patient Monitor (MFX-3000A)

bargain

Model NO.	MFX-3000A
Type	Patient/Fetal/Maternal Monitor
Hr Measure Range	20bpm-250bpm
Resp Measure Range	Not Less Than 0 Time/Min-100 Times/Min
Origin	Shandong, China
Classification	Physiological Functions of Diagnosis and Monitoring Equipment
Certification	CE, ISO13485
SpO2 Range	0%-100%
Trademark	Medfar

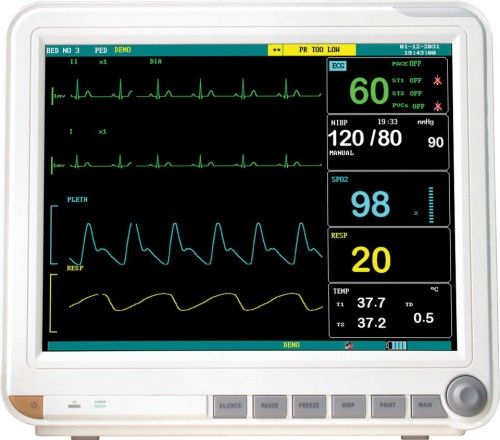

MFX-3000A optional ETCO2 Portable Patient Monitor (Figure 1-1) is adaptable to adult, pediatric and neonatal usage. It can monitor vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP. It integrates parameter measuring modules, display and recorder in one device, featuring in compactness, lightweight and portability. Replaceable built-in battery facilitates transportation of patient. Large high-resolution display provides clear view of 9 waveforms and full monitoring parameters
provides extensive functions as visual & audible alarm, storage and report printout for trend data, NIBP measurements, and alarm events, and drug dose calculation function is provided eithereitherither
Component details
Screen: 12.1' TFT displayisplay
five waveforms can be displayed at the same tiem. The waveforms from top to bottom are: ECG, ECG II, SpO2 Plethysmogram, RESP (possible coming from ECG module). Waveforms to be displayed are user-selectable. Refer to Tracing Waveforms Selection for details.
Can keep recording data for 72 hours
Button function
All the operations to the monitor are through the buttons and a knob at the bottom of the screen. The name of the buttons are above them

Techniques Specification
Display: 12.1' TFTt; TFT
Message area	The Message Area is at top of the screen displaying operating state of the monitor and status of the patient
waveform area	Four waveforms can be displayed at the same time. The waveforms from top to bottom are: ECG I, ECG II, SpO2 Plethysmogram, RESP (possibly coming from ECG module). W aveforms to be displayed are user-selectable. Refer to Tracing W aveforms Selection for details
Parameter Area	The parameters refresh every second, except that NIBP values refresh each time the measurement is over. User can select the monitor parameters, and the screen display will change accordingly
Alarm indicator	In normal mode, no indicator lights. In alarm mode, the alarm indicator lights or flashes
Monitoring of
ECG	Heart Rate( HR); 2 Channel ECG W aveforms; S-T Segment analysis ; Arrhythmia ( Optional)
RESP	Respiratory Rate (PR); Respiration W aveform
Spo2	Oxygen Saturation ( Spo2) Pulse Rate ( PR) SpO2 Plethysmogram
NIBP	Systolic Pressure (NS), Diastolic Pressure (ND), Mean Pressure (NM)
TEM	Temperature DATA
ECG
Standard Leads	RA.; LA ; RL; LL ; V
performance gains	0.25 ; 0.5; 1 ; 2; (4 gears adjustable)
Working Mode	Dagnose ; ( It should be ﹥90db)0db) Monitoring; Operation ( It should be ﹥109db)9db)
Protection	Anti shock; Anti-ESU
Instruction of Electrode loss	Ves
HR
Measure Range	20bpm-250bpm
Alarm Range	Up: 22bpm-250bpm ; Lower: 20bpm- 248 bpm
SPO2
Range	0%- 100%
Alarm Range	Up: 70 % - 100% ; Low: 0% - 99%
RESP
Measure Range	Not less than 0 timel min- 100 timesl min
Display	Waveforms & Breathing Rate Rate Rate
PR
Measure Range	Not less than 30bpm - 250bpm
TEMP
Measure Range	Not less than 28ºC -43.2ºC43.2ºCrdm;C43.2ºC
Alarm Range	Up: 0.2ºC - 50ºC ; Low: 0ºC- 49.8 ºCºC- 49.8 ºC.8 ºCºC- 49.8 ºC
NIBP
Measure Mode	Manu, Auto, STAT
Measuring range	systolic pressure: 50 mmHg ~ 240 mmHg
	mean blood pressure:25 mmHg ~ 200 mmHg
	diastolic pressure:15 mmHg ~ 180 mmHg
Alarm Range	systolic pressure:Up: 52 mmHg ~ 250 mmHg ; Low: 50 mmHg ~ 248 mmHg
	mean blood pressure:Up: 22 mmHg ~ 230 mmHg ; Low: 20 mmHg ~ 228 mmHg
	diastolic pressure:Up: 17 mmHg ~ 180 mmHg ; Low: 15 mmHg ~ 178 mmHg
Optional	RESP; 2- TEM P; ETCO2; NETWORK
Alarm
sound-light alarm, Alarm must be set up according to different situation of individual patient. Make sure that audio sounds can be activated when alarm occurs
