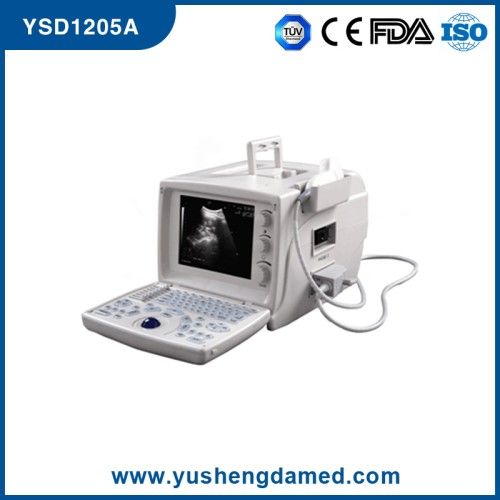

CE ISO Approved Full Digital Portable Ultrasound Scanner Ysd1205A
| Model NO. | YSD1205A |
| Type | Ultrasound Scanner |
| Group | Human |
| Medical Devices Reg./Record No. | 20142230425 |
| Scanning Depth | 40mm-240mm |
| Color | White |
| N.W | 9kg |
| Warranty | 2 Years |
| Frequency | Multifrequency 2.0MHz-12MHz |
| Transport Package | in Carton Packing |
| Origin | China Chengdu |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, FDA, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Display Mode | B,2b,B+M,M,4b |
| Monitor | 10.4 Inch High Resolution CRT |
| Export Market | Whole World |
| Power | AC110V-240V,50Hz/60Hz |
| Probe Connector | 1 |
| Trademark | YSD |
| Specification | CE FDA SGS MD ISO 13485 |
| HS Code | 9018121000 |
Main Feature
1. Ultrasound Work-station managing system
2. Powerful measurement&calculation software packagesckageskages
3. Patient data managing system
4. THI(tissue harmonic imaging)
5. Optional 3D reconstruction
6. Dicom 3.0
Measurement:
General, Gynecology, Obstetric, Cardiac, Urology, Small organ, Orthopedics
Technical Specifications
Power supply: AC110V-240V,50Hz/60Hz
Scanning mode: convex/linear/micro-convex
Monitor:10'4 high resolution
Display mode:B,2B,B+M,M,4B
Scanning depth:40mm-240mm
Gray:256
Cine-loop:1024
Body marks:140
Image permanent storage: ≥1000 framesamesames
Hard disk:≥80G;80G;80G
Image conversion:up/down,left/right,black/white
Local zoom: 6 times both in real-time and frozen
Probe selectable:convex, linear, micro-convex, transvaginal and dorectal
Ports: PAL-D, VGA, RS-232,USB2.0, DICOM3.0
Comment: PID, date, name, sex, age, doctor, hospital, annotation
Probe connectors:2
Standard Accessary:
YSD1205A main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option:
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
1. Ultrasound Work-station managing system
2. Powerful measurement&calculation software packagesckageskages
3. Patient data managing system
4. THI(tissue harmonic imaging)
5. Optional 3D reconstruction
6. Dicom 3.0
Measurement:
General, Gynecology, Obstetric, Cardiac, Urology, Small organ, Orthopedics
Technical Specifications
Power supply: AC110V-240V,50Hz/60Hz
Scanning mode: convex/linear/micro-convex
Monitor:10'4 high resolution
Display mode:B,2B,B+M,M,4B
Scanning depth:40mm-240mm
Gray:256
Cine-loop:1024
Body marks:140
Image permanent storage: ≥1000 framesamesames
Hard disk:≥80G;80G;80G
Image conversion:up/down,left/right,black/white
Local zoom: 6 times both in real-time and frozen
Probe selectable:convex, linear, micro-convex, transvaginal and dorectal
Ports: PAL-D, VGA, RS-232,USB2.0, DICOM3.0
Comment: PID, date, name, sex, age, doctor, hospital, annotation
Probe connectors:2
Standard Accessary:
YSD1205A main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option:
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
| Probes |
| 3.5Mhz abdominal probe |
| 6.5Mhz transvaginal probe |
| 7.5Mhz linear probe |
| 3.5MHz micro-convex probe |
| 5.0 MHz micro-convex probe |
| 7.5Mhz rectum probe |
