1.System Application

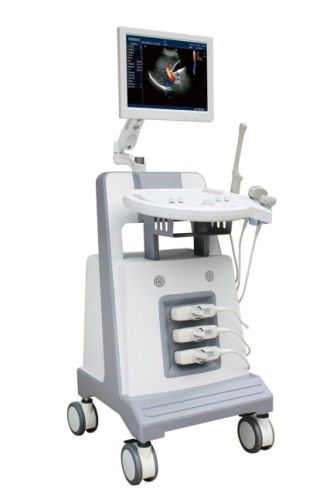

DCU2 full digital color Doppler ultrasound scanner is available for the diagnosis of abdomen (including GYN and OB), cardiology, vessel and small parts, with the following scanning mode: 2D, CFM, PDI, PW and M to provide the best resolution and sensitivity.
Support convex probe, linear probe and transvaginal probe, etc.

2.General Specification

2.1 Dimension

Main unit size: 660mm(H) x 500mm(W) x 1200-1400mm(H) (height of liquid crystal holder is adjustable)
N.W.: 35 Kg(without probe)

2.2Power Supply

Dual power-supply system: AC110/230V -15%~+10%(self-adaptation supply voltage ) 60/50Hz±1Hzusmn;1Hzusmn;1Hz

2.3Display

15' high definition & flicker free color medical LCD monitorCD monitornitor

3.System Description

3.1Probe specification

• 3.5MHz multi-frequency convex probe

• 7.5MHz multi-frequency linear probe
• 6.5MHz multi-frequency transvaginal probe

3.2Operating mode

B,B/B,4B mode
M,B/M mode
CFM
PDI
PW
THI

3.3Probe socket: 3

3.4Media & peripheral devicedeviceevice

USB flash card
Video printer: Sony UP-897MD
TV Output:PAL/NTSC
Color laser printer (defined model:HP Color LaserJet CP1515n,
HP Color LaserJet CP1525n)
If you want to connect with other model Color laser printer, then you can use
our 1pc CD and 1pc reticle (Standard configuration).

3.5Storage

Image storage, cine loop storage, cine loop ≥≥ge;≥300 frames

3.6Puncture Guide Line

Adjustable angle and memory storage

3.7Languages

Menu operation: Chinese / English / Russia / Portuguese

6.Scanning parameters

6.1B Mode

6.2M Mode

6.3CFM color Doppler mode

6.4PDI Power Doppler Mode

6.5PW Spectrum Doppler Mode

6.6Image diplay

256 grades gray scale 2D image diplay
gray scale histogram plot display
Image reservation:up/down, right/left
Depth scope:32~252 mm (35 grades) each probe has its own depth scope
and adjustable grades
Focus: continuous dynamic focus, dynamic aperture
Dynamic: ≥≥ge;≥100dB (visual & adjustable)able)able)
M mode speed: 8 classes adjustable
Display TGC curve
Black & white relatedlatedlated
Video output: NTSC or PAL

7. Measurement / Calculation

7.1General measurement

B Mode measurement: distance, area (distance measurement method, ellipse distance method, trace method), circumstance (distance measurement method, ellipse distance method, trace method), volume (two - axial method), angle , Histogram , sectional view, stenosis rate( length stenosis rate, area stenosis rate ) and depth.
M mode measurement: depth, slope, heart rate, circle
D mode measurement: velocity, heart rate, flow velocity, time acceleration, Pulse/ Resistance Index, Max differential pressure, PG mean,ratio, stroke volume, flow rate.

7.2 Gynecology measurement and analysis

7.3 Obstetric measurement and analysis

7.4 Urology measurement and analysis: Prostate volume, Residual Urine Volume

7.5 Cardiology measurement and analysis
