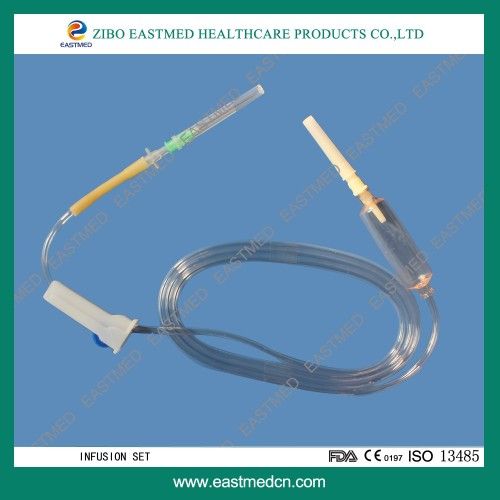

Code No.: 005
Consist of:
1. Piercing device-Made of medical grade white ABS, with or without air
Inlet, 3 or 4 holes size according to ISO8536-4 standard.
2. Protective cap-Made of PP or PE.
3. Drip chamber-Made of soft PVC, size according to ISO8536-4 Standards, 4.5cm-7cm in length.
4. Fluid filter-Support is made of ABS or PE, nylon net, mesh size: 15 micron.
5. Air inlet-Cap is made of red, white, or blue PP
6. Water-repellent filter-PP support, hydrophobic filtering paper, made of
Acrylic resin and nylon.
7. Flow regulator-Made of PP or ABS, normal shape, small size or Horned shape, large size.
8. Injection site-Latex cone, rubber cone, synthetic rubber cone, Y Site-made of hard transparent PVC+injection site made of natural or Synthetic rubber.
9. Soft tubing-Made of soft medical grade PVC, 3X4mm, 150cm in
Length, or adjust according to requirements.
10. Terminal connector: Made of PE, PVC, luer lock or luer slip.
11. Components assembly: By gluing with solvent cyclohexanone
Specification: They are suited to hard containers and soft bags( without
Air inlet type)
Sterile, non-toxic, pyrogen free, sterilized by EOG.
Certificate: CE, ISO9002, EN46002
