Product Description

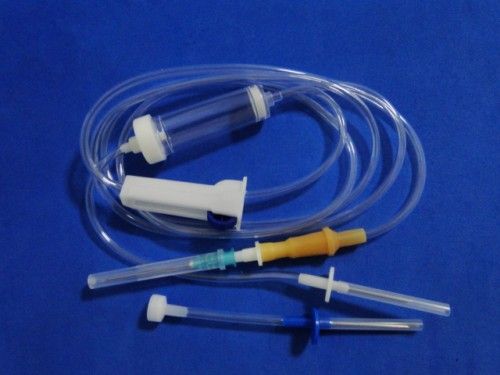

Products: I. V. Solution Administration Sets.
Code No.: IV-1, IV-2, IV-3
Consist of:
1. Piercing device--Made of medical grade white ABS, with or without air
Inlet, 3 or 4 holes size according to ISO8536-4 standard.
2. Protective cap--Made of PP or PE.
3. Drip chamber--Made of soft PVC, size according to ISO8536-4
Standards, 4.5cm--7cm in length.
4. Fluid filter--Support is made of ABS or PE, nylon net, mesh size: 15 micron.
5. Air inlet--Cap is made of red, white, or blue PP
6. Water-repellent filter-PP support, hydrophobic filtering paper, made of
Acrylic resin and nylon.
7. Flow regulator--Made of PP or ABS, normal shape, small size or horned
Shape, large size.
8. Injection site--Latex cone, rubber cone, synthetic rubber cone, Y site-
Made of hard transparent PVC+injection site made of natural or synthetic
Rubber.
9. Soft tubing--Made of soft medical grade PVC, diameter 3X4mm,
150cm in length, or adjust according to requirements...
10. Terminal connector: Made of PE, PVC, luer lock or luer slip.
11. Components assembly: By gluing with solvent cyclohexanone
Specification:
They are suited to hard containers and soft bags( without air inlet type)
Sterile, non-toxic, pyrogen free, sterilized by EOG.
Packing:
1PC/blister package 20PCS/MID. PE bag, 20 bags/CTN carton size changes according to the specific volume of products. (volume is up to Chamber size, tube length, different components)
1PC/polybag (HDPE, LDPE, compound film), 20PCS/MID. PE bag, 20bags/CTN, carton size changes according to the specific volume of Products.
Remark: You can also give us your specific requirements to confirm the products you need finally.
