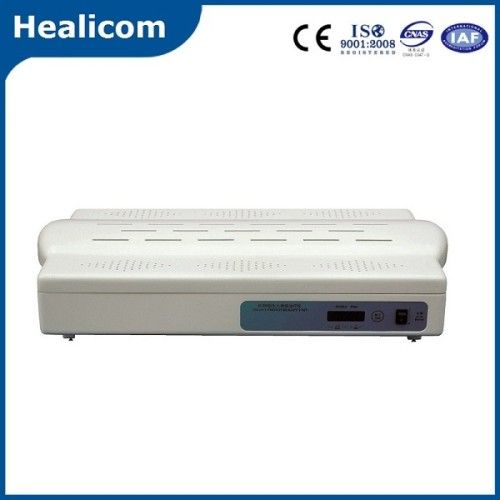

H-200 LED Infant Phototherapy Unit for Infant Incubator

450-480 USD

Model NO.	H-200
Certification	CE, ISO13485
Group	Infant
Medical Devices Reg./Record No.	Jyjxz20122260356
Light Source Effective Life	50, 000 Hours
Display Time Accuracy	2h±1minusmn;1minsmn;1min
Trademark	Healicom
Origin	China
Type	Infant Phototherapy
LCD Display	Without LCD Display
Medical Device Regulatory Type	Type 2
Light Source	LED Light
Wavelength	460nm~470nm
Working Environment Requirement	+10oc~+30oc
Specification	ISO
HS Code	90189090

Standard composition:
1. Use LED light as lighting source;
2. LED Digital Timer, display therapy time & total time;time;time;
3. Roof type applicable for any model of incubator.
Technical specification:

Irradiance phototherapy distance	35cm~37cm
Effective area	45cm*24cm
Ebi in effective area surface	500μW/cm2/cm2/cm2
Ebi max in effective area surface	650μW/cm2/cm2/cm2
Ebi average in effective area surface	500μW/cm2/cm2/cm2
Uniformity of Ebi	>0.4
Infrared radiation in effective area	<1mW/cm2(760nm<λ≤1400nm=ambda;≤1400nm=
Ultraviolet radiation in effective area	<1.0×10-5mW/cm2 (180nm<λ≤400nm=m<λ≤400nm=
Time display accuracy	2h±1minsmn;1minsmn;1min
Operate noise	≤50dB(A)(ambit noise is lower than 40dB(A))(A))(A))
Environment condition	Environment temperature	Operate temperature range		+10ºC ~ +30ºC +30ºCrdm;C +30ºC
		Storage temperature range		-40ºC ~ +70ºC +70ºCrdm;C +70ºC
	Environment humidity	Operate humidity range		30%~75%
		Storage humidity range		≤80%;80%;80%
	Transport and storage atmospheric pressure range:500hPa~1060hPa
Power	Model B-200-1E		110 / 120Vac, 50Hz / 60Hz
	Model B-200-2E		220 / 240Vac, 50Hz / 60Hz
	Input power		≤50VA50VA50VA
	Accord with IEC 60601-1 standard, this device is in class I, continuous handling.
