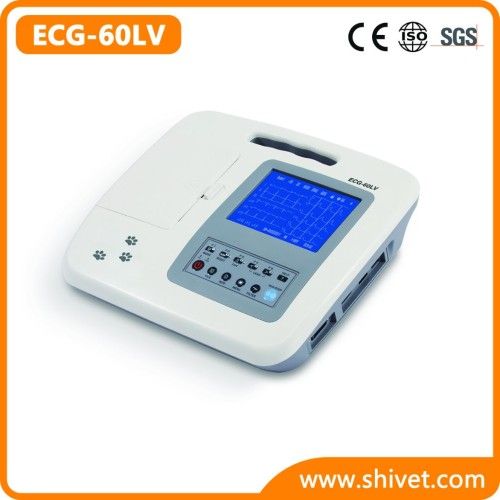

Portable Veterinary ECG Machine (ECG-60LV)
bargain
add to cart| Model NO. | ECG-60LV |
| 3 Operation Mode | Automatic, Manual, Ana |
| Trademark | SHINOVA |
| Specification | ISO, CE |
| HS Code | 90181100 |
| LCD Display | 6" |
| Lead Mode | Standard, or European |
| Transport Package | Carton |
| Origin | China |
Portable Veterinary ECG Machine
Model: ECG-10AV, ECG-30AV, ECG-60LV
Features:
Specifications:
Safety Standard: IEC Class I, type CF
Acquisition Mode: 7 lead acquisition simultaneously
Input Circuit: Floating, protection against defibrillator and pacemaker
A/D Converter: 12 bit
Time Constant: ﹥3.2s3.2s
Frequency Response: 0.05Hz ~ 165Hz
Sensitivity: 2.5, 5, 10, 20, 40 (mm/mV±2%), Auto%), Auto%), Auto
Input Impedance: ≥50MΩ50MΩOmega;50MΩ
Input Circuit Current: ≤50nA50nA50nA
Calibration Voltage: 1mV±2%lusmn;2%lusmn;2%
Noise Level: <15μVp-pmu;Vp-p
Anti Baseline Drift : Automatic
Filter: EMG Filter: 25Hz~45Hz(-3dB)
ADS Filter: Auto(0.15-0.50Hz)
HUM Filter: 50Hz/60Hz (-20dB)
CMRR: ﹥100dB00dB
Patient Current Leakage: <10μA10μA
Paper Speed: 6.25/12.5/25/50mm/s
Recording Paper: 50mm(width), 20m/30m(length), roll (ECG-10AV)
63mm(width), 20m/30m(length), roll (ECG-30AV)
112mm(width), 20m/30m(length), roll (ECG-60LV)
Power Supply: AC: 110/220V, 50/60Hz
DC: 12V, built-in rechargeable battery
Dimension: 295mmx260mmx60mm (Main unit of ECG-10AV)
415mmx195mmx380mm (Carton of ECG-10AV)
345mmx300mmx80mm (Main unit of ECG-30AV)
415mmx195mmx380mm(Carton of ECG-30AV)
345mmx300mmx80mm (Main unit of ECG-60LV)
415mmx195mmx380mm(Carton of ECG-60LV)
Net Weight: 2.3kgs (ECG-10AV), 2.5kgs (ECG-30AV/ECG-60LV)
Gross Weight: 4.5kgs
Standard:
ECG Main unit, ECG cable, veterinary electrodes (clip type), Dust cover, Rechargeable battery, Thermal Paper, Paper roller, Screwdriver.
Optional:
ECG workstation, USB function board, SD card, Aluminum trolley, Carrying bag.
ECG Function Sheet:
Model: ECG-10AV, ECG-30AV, ECG-60LV
Features:
Automatic baseline adjustment for optimum printing
Pre-10 seconds preview
Cat & dog software packageckageckage
7-Lead simultaneous acquisition
Operation modes: AUTO, AUTO2, MAN, and ANA
Filters: HUM, EMG, ADS
Power supply: AD, DC, Battery
Lead modes: Standard and Cabrera
Data storage: 12 ECG Files in main unit, 250 ECG Files to SD card
Compact & light weighteighteight
Lead off detection
Low battery indicator
Specifications:
Safety Standard: IEC Class I, type CF
Acquisition Mode: 7 lead acquisition simultaneously
Input Circuit: Floating, protection against defibrillator and pacemaker
A/D Converter: 12 bit
Time Constant: ﹥3.2s3.2s
Frequency Response: 0.05Hz ~ 165Hz
Sensitivity: 2.5, 5, 10, 20, 40 (mm/mV±2%), Auto%), Auto%), Auto
Input Impedance: ≥50MΩ50MΩOmega;50MΩ
Input Circuit Current: ≤50nA50nA50nA
Calibration Voltage: 1mV±2%lusmn;2%lusmn;2%
Noise Level: <15μVp-pmu;Vp-p
Anti Baseline Drift : Automatic
Filter: EMG Filter: 25Hz~45Hz(-3dB)
ADS Filter: Auto(0.15-0.50Hz)
HUM Filter: 50Hz/60Hz (-20dB)
CMRR: ﹥100dB00dB
Patient Current Leakage: <10μA10μA
Paper Speed: 6.25/12.5/25/50mm/s
Recording Paper: 50mm(width), 20m/30m(length), roll (ECG-10AV)
63mm(width), 20m/30m(length), roll (ECG-30AV)
112mm(width), 20m/30m(length), roll (ECG-60LV)
Power Supply: AC: 110/220V, 50/60Hz
DC: 12V, built-in rechargeable battery
Dimension: 295mmx260mmx60mm (Main unit of ECG-10AV)
415mmx195mmx380mm (Carton of ECG-10AV)
345mmx300mmx80mm (Main unit of ECG-30AV)
415mmx195mmx380mm(Carton of ECG-30AV)
345mmx300mmx80mm (Main unit of ECG-60LV)
415mmx195mmx380mm(Carton of ECG-60LV)
Net Weight: 2.3kgs (ECG-10AV), 2.5kgs (ECG-30AV/ECG-60LV)
Gross Weight: 4.5kgs
Standard:
ECG Main unit, ECG cable, veterinary electrodes (clip type), Dust cover, Rechargeable battery, Thermal Paper, Paper roller, Screwdriver.
Optional:
ECG workstation, USB function board, SD card, Aluminum trolley, Carrying bag.
ECG Function Sheet:
| Model | Channel | Auto Measurement | Auto Analysis | LCD Size | Waveforms | Paper Width | Info | File | Help | RS232 | USB | SD Card |
| ECG-10AV | 1-Channel | Yes | Yes | 3.8" | 7-ch | 50mm | Yes | Yes | Yes | Yes | Option | Option |
| ECG-30AV | 3-Channel | Yes | Yes | 3.8" | 7-ch | 63mm | Yes | Yes | Yes | Yes | Option | Option |
| ECG-60LV | 6-Channel | Yes | Yes | 6" | 7-ch | 112mm | Yes | Yes | Yes | Yes | Yes | Yes |
