Desktop Veterinary Pulse Oximeter (BW2A-V), Pulse Oximetry, Good Price
| Model NO. | BW2A-V |
| Trademark | BONDWAY |
| Origin | CHINA |
| Certification | ISO13485 |
| Specification | ISO13485 EN60601-1/ GB9706.1 EN60601-1-2, EN60601 |
| HS Code | 90181930 |

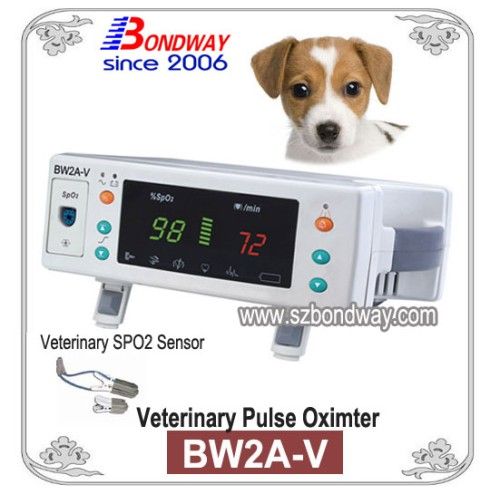

Desktop Veterinary Pulse Oximeter
Model No: BW2A-V
Features
1. Bright, easy-to-read large LED display
2. Durable, compact and light weight
3. Long-life internal rechargeable battery for uninterrupted monitoring
4. Accurate, reliable readings during low perfusion and motion
5. Audiable/visual three level alarms with alarm volume control
6. 72-hour data memory allowing on-screen data replay
7. Suitable for cats, dogs or similar sized animals
8. Optional internal thermal recorder
9. RS232 port for external printer and central monitoring
10. Able to connect to nurse call network
Model No: BW2A-V
Features
1. Bright, easy-to-read large LED display
2. Durable, compact and light weight
3. Long-life internal rechargeable battery for uninterrupted monitoring
4. Accurate, reliable readings during low perfusion and motion
5. Audiable/visual three level alarms with alarm volume control
6. 72-hour data memory allowing on-screen data replay
7. Suitable for cats, dogs or similar sized animals
8. Optional internal thermal recorder
9. RS232 port for external printer and central monitoring
10. Able to connect to nurse call network
Technical Specs | |
| Performance | SpO2: 0 - 100 % |
| measurement Range | Resolution: 1% |
| Pulse Rate range: 25 BPM- 400 BPM | |
| Resolution: 1 BPM | |
| SpO2 Accuracy | No motion: 70%-100% ± 2%usmn; 2%usmn; 2% |
| 0%-69% unspecified | |
| Motion: 70%-100% ± 3%usmn; 3%usmn; 3% | |
| 0%-69% unspecified | |
| Low perfusion: 70%-100% ± 3%usmn; 3%usmn; 3% | |
| 0%-69% unspecified | |
| Pulse Rate | No motion: ± 3%usmn; 3%usmn; 3% |
| Accuracy | Motion: ± 5%usmn; 5%usmn; 5% |
| Low perfusion: ± 5%usmn; 5%usmn; 5% | |
| Alarm | Audible/visual alarms |
| Adjustable alarm limits | |
| Output | RS-232 Serial port for digital output |
| Nurse call funtion | |
| Electrical instrument | Power requirements: 100~240 V AC, 50/60Hz, 40VA |
| Fuse Rating: 1.0A | |
| Battery | Internal battery: 12V |
| Battery capacity: ≥24 hoursoursours | |
| Environment | Operating: Temperature: 5-40Celsius temperature |
| Humidity: 10%-95% | |
| Transport/Storage: Temperature: -20-70Celsius temperature | |
| Humidity: 10%-95% | |
| Physical characteristics | Dimension: 264mm(W)*95mm(H)*172mm(D) |
| 10.39in(W)*3.74IN(H)*6.77in(D) | |
| Net weight: 2.25kg | |
| Gross weight: 5.0kg | |
| Compliance | EN60601-1/ GB9706.1 EN60601-1-2, EN60601-2-49 |
