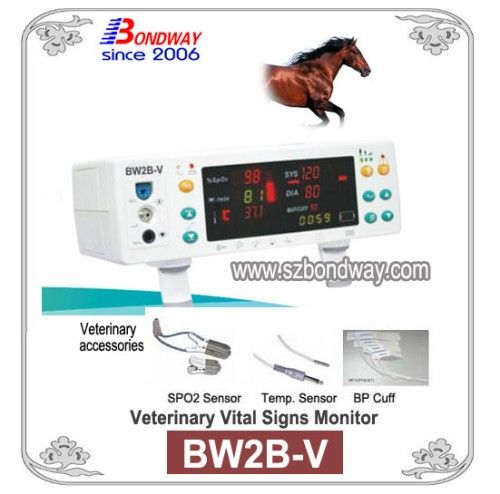

Vital Signs Monitor for Veterinary Use, Suitable for Cat, Dog, Horse, etc
| Model NO. | BW2B-V |
| Trademark | BONDWAY |
| Origin | China |
| Standard Parameter | SpO2, NIBP, Temperature, Respiration |
| Specification | ISO13485 |
| HS Code | 90181930 |
Vital Sign Veterinary Monitoring
Model No: BW2B-V
Features
1. Bright, easy-to-read large LED display
2. Durable, compact and light weight
3. Long-life internal rechargeable battery for uninterrupted monitoring
4. Accurate, reliable readings during low perfusion and motion
5. Audiable/visual three level alarms with alarm volume control
6. 72-hour data memory allowing on-screen data replay
7. Suitable for cats, dogs and horse and similar-sized animals
8. Optional internal thermal recorder
9. RS232 port for external printer and central monitoring
10. Able to connect to nurse call network
Model No: BW2B-V
Features
1. Bright, easy-to-read large LED display
2. Durable, compact and light weight
3. Long-life internal rechargeable battery for uninterrupted monitoring
4. Accurate, reliable readings during low perfusion and motion
5. Audiable/visual three level alarms with alarm volume control
6. 72-hour data memory allowing on-screen data replay
7. Suitable for cats, dogs and horse and similar-sized animals
8. Optional internal thermal recorder
9. RS232 port for external printer and central monitoring
10. Able to connect to nurse call network
| Technical Specs | |
| Performance | SpO2: 0 - 100 % |
| measurement Range | Resolution: 1% |
| Pulse Rate range: 25 BPM- 400 BPM | |
| Resolution: 1 BPM | |
| SpO2 Accuracy | No motion: 70%-100% ± 2%usmn; 2%usmn; 2% |
| 0%-69% unspecified | |
| Motion: 70%-100% ± 3%usmn; 3%usmn; 3% | |
| 0%-69% unspecified | |
| Low perfusion: 70%-100% ± 3%usmn; 3%usmn; 3% | |
| 0%-69% unspecified | |
| Pulse Rate | No motion: ± 3%usmn; 3%usmn; 3% |
| Accuracy | Motion: ± 5%usmn; 5%usmn; 5% |
| Low perfusion: ± 5%usmn; 5%usmn; 5% | |
| Alarm | Audible/visual alarms |
| Adjustable alarm limits | |
| Non-invasive blood pressure | Measurement range: 15-270mmHg |
| Resolution: 1mmHg | |
| Method: oscillometric | |
| Mode: manual/automatic/continuous | |
| Temperature | Meassurement range: 25-45 Celsius temperature |
| Accuracy: ±0.2Celsius temperatureperatureperature | |
| Output | RS-232 Serial port for digital output |
| Nurse call funtion | |
| Electrical instrument | Power requirements: 100~240 V AC, 50/60Hz, 40VA |
| Fuse Rating: 1.0A | |
| Battery | Internal battery: 12V |
| Battery capacity: ≥24 hoursoursours | |
| Environment | Operating: Temperature: 5-40Celsius temperature |
| Humidity: 10%-95% | |
| Transport/Storage: Temperature: -20-70Celsius temperature | |
| Humidity: 10%-95% | |
| Physical characteristics | Dimension: 264mm(W)*95mm(H)*172mm(D) |
| 10.39in(W)*3.74IN(H)*6.77in(D) | |
| Net weight: 2.25kg | |
| Gross weight: 5.0kg | |
| Compliance | EN60601-1/ GB9706.1 EN60601-1-2, EN60601-2-49 |
