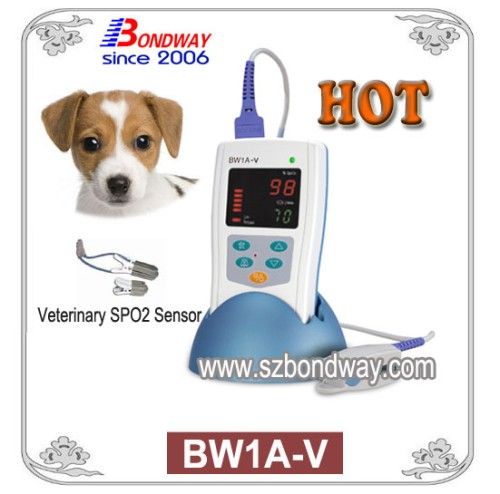

Handheld Veterinary Pulse Oximeter (BW1A-V)
| Model NO. | BW1A-V |
| Specification | ISO13485 |
| HS Code | 90181930 |
| Trademark | BONDWAY |
| Origin | CHINA |
Handheld Veterinary Pulse Oximeter (BW1A-V)
Features
1. Digital SpO2 Sensor
2. Anti-Movement, Low Perfusion Measurement
3. Bright, Easy-to-Read LED Display
4. Power-Save Mode
5. Suitable for Cats, Dogs or Similar Sized Animals
6. Alarm function
Features
1. Digital SpO2 Sensor
2. Anti-Movement, Low Perfusion Measurement
3. Bright, Easy-to-Read LED Display
4. Power-Save Mode
5. Suitable for Cats, Dogs or Similar Sized Animals
6. Alarm function
| Technical Specs | ||||
| SPO2 | Measurement range: | 0 - 100 % | ||
| Accuracy: | ± 2 % during 70%~100%70%~100%70%~100% | |||
| Below 70% unspecified | ||||
| Pulse Rate | Measurement range: | 25 BMP - 400 BMP | ||
| Accuracy: | ± 2 BMP, 25 BMP-100 BMP-100 BMP-100 BMP | |||
| ± 2%, 100 BMP-400 BMP-400 BMP-400 BMP | ||||
| Visual Displays and Indicators: | Sp02 Display: | Red LED, variable brightness | ||
| Pulse Rate Display: | Green LED, variable brightness | |||
| Pulse intensity: | Red LED, 8 Bars | |||
| Power Indicator Light: | Green- Normal | |||
| Low Power Voltage: | Red and Blink | |||
| Low Perfusion Indicator: | Red Bar | |||
| Audio Indicators: | Sensor off audio indicator (every 15 seconds) | |||
| Pulse audio indicator | ||||
| Key-pressing indicator | ||||
| Low power voltage indicator | ||||
| Alarm: | Audible and visual alarms for high/low SpO2 and Pulse Rate | |||
| Alarm limits adjustable | ||||
| Alarm silence interval: 30, 60, 90 and 120 seconds | ||||
| Environmental Specifications: | Temperature Range: | Operation: 0~+50Celsius temperature | ||
| Transport/Storage: -40~+70Celsius temperature | ||||
| Relative humidity: | Operating: 10~95% | |||
| Transport/Storage: 5~95% (noncondensing) | ||||
| Power Requirements: | DC 4.0-6.0V four standard ' AA' 1.5V batteries providedes provided | |||
| Battery Life: | 15 hours at minimum | |||
| Dimensions: | 130mm (L)× 69mm(W)× 22mm(H)imes; 22mm(H)imes; 22mm(H) | |||
| New Weight: | 195g/100g (with batteries/without batteries) | |||
| Gross Weight: | 500g | |||
| Safty Standards: | IEC-6060-1 ISO9919 | |||
| Regulatory Compliance: | ISO 13485 | |||
