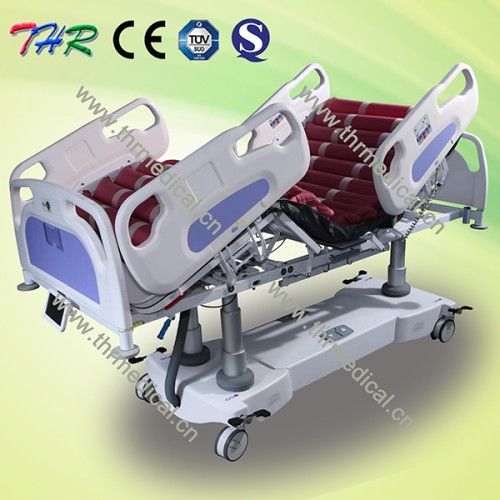

THR-IC-15 Professional ICU electric bed
SPEFICATION
DC Linear Actuators: 2
Lifting Columns: 3
Safety load: 230kg
Overall Length: 2300mm
Overall Length with extended pallet: 2500mm
Overall Width: 1080mm
Sleep deck: 2100mm× 840mm; 840mm; 840mm
Mattress Size: 2100mm× 840mm× 80mmm× 80mm; 80mmm× 80mm
Backrest segment regress distance: 120mm
Thighrest segment regress distance: 90mm
Backrest X-ray cassette holder: 420mm*650mm
Slip X-ray cassette holder: 470mm*470mm
Double-faced Caster Size: 150mm
Voltage: 220~230V, 50Hz~60Hz Standard
MULTI-BED POSITION
1. The bed can change the height of the pallet, the inclination angle of backrest segment and legrest segment, and the angle of both longitudinal and lateral tilt.
2. THR-IC-15 also has short cut keys for CPR position, Cardiac-chair, Fower position, examination position, Trendeleburg and Anti-trendeleburg position.
3. It meets all the requirments from caregivers and patients.
ADVANCED OPERATION AND CLEAR LCD DISPLAY
EASY MOVEMENT
Wth 150mm central control medical castors and central brake system, the bed can be moved smoothly in any direction or be braked.
DUAL-REGRESS FUNCTION
X-ray EXAMINATION
PRECISE SCALE SYSTEM
Using Germany HBM sensor the scale system reaches precision up to 50kg.
LATERAL TILT FUNCTION
1. About 30° Lateral tilt rotation.tion.tion.
2. Special mattress and belts for lateral tilt are available, which can tilt up to 45°°deg;°
