Main Feature
15' LCD display, environment protectionection
Multi-frequency probe
2 activated probe ports, easy probe switch
8-segment TGC, precise adjustment of near/far gain
Embed PC, stability, security and connectivity
Abundant diagnostic software packages, satisfying different clinical requirement
Various peripheral ports, flexible expansion solutions
Smart 3D imaging (option), vivid presentation of fetus face
Technical specifications
Safety standard: IEC 60601-1, 60601-1-2, EN 60101
AC: 110-220V, 50/60Hz, ±10%usmn;10%usmn;10%
Monitor: 15' High resolution CRTon CRT
TGC: 8 segments
Body mark: 123 types
Gray scale: 256
Scanning method: electronic convex/linear/micro-convex
Probe: electronic convex/linear, broadband, multi-frequency, THI on all probes
Clinical application: General, Obstetric, Gynecology, Cardiology, Urology, Small organ, etc
Display mode: B, 2B, 4B, B/M, M
Zoom: continuously, real-time dynamic PIP
Image storage: ﹥50,000 framesames
Cine loop: Auto 512 frames
Image/video format: AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
Scan angle: 60-160 degrees, depending on probe
Scan depth: 40mm~300mm, depending on probe
Dynamic range: ≥120dB, 4-level adjustableableable
Image flip: up/down, left/right, black/ white, 90/180/270°°deg;°
Annotation: date, time, name, sex, age, doctor, hospital name, etc
Peripheral port: Video, S-video, USB2.0, DICOM3.0, VGA
Standard Accessary

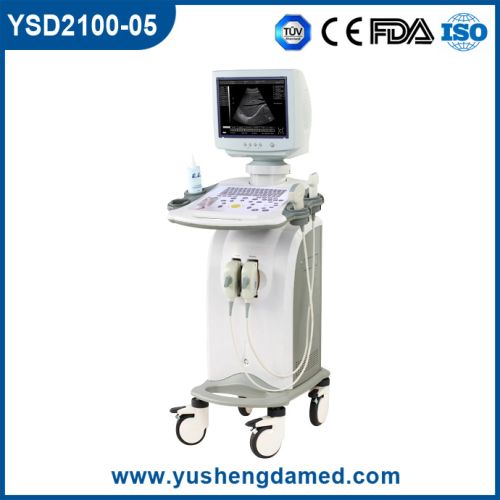

YSD2100-05 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
