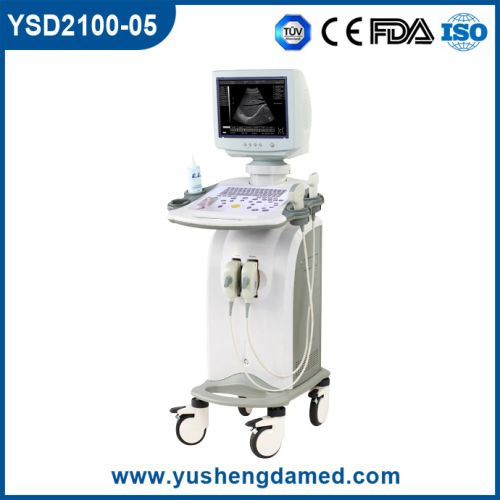

Ysd2100-05 Ce ISO FDA Approved Digital Trolley Ultrasound System

1+	2300 USD
1000+	1 USD

add to cart

Model NO.	YSD2100-05
Type	Ultrasound Scanner
Group	Middle-aged and Old
Medical Devices Reg./Record No.	20142230425
Monitor	15 Inches
Classification.	Imaging Diagnostic Equipment
Exporting Market	All The World
Probe Connector	2
Manufacture	Chengdu,China
Transport Package	in Wooden Box Packing
Origin	Chengdu
Classification	Imaging Diagnostic Equipment
Certification	CE, SGS, FDA, MSDS, ISO13485
Medical Device Regulatory Type	Type 2
Type.	Trolley Ultrasound Scanner
Color	White
Warranty	2 Years
Certificate	Ce ISO FDA 13485
OEM	Acceptable
Trademark	YSD
Specification	CE MD ISO 13485
HS Code	90181210

Main Feature
Δ. 15' LCD display, environment protectionnt protectiontection
Δ. Multi-frequency probey probey probe
Δ. 2 activated probe ports, easy probe switch switch switch
Δ. 8-segment TGC, precise adjustment of near/far gainar gainar gain
Δ. Embed PC, stability, security and connectivityctivityctivity
Δ. Abundant diagnostic software packages, satisfying different clinical requirementirementirement
Δ. Various peripheral ports, flexible expansion solutionslutionslutions
Δ. Smart 3D imaging (option), vivid presentation of fetus faceus faceus face
Technical specifications

Safety standard	IEC 60601-1, 60601-1-2, EN 60101
AC	110-220V, 50/60Hz, ±10%lusmn;10%usmn;10%
Monitor	15' High resolution CRTion CRT
TGC	8 segments
Body mark	123 types
Gray scale	256
Scanning method	electronic convex/linear/micro-convex
Probe	electronic convex/linear, broadband, multi-frequency, THI on all probes
Clinical application	General, Obstetric, Gynecology, Cardiology, Urology, Small organ, etc
Display mode	B, 2B, 4B, B/M, M
Zoom	continuously, real-time dynamic PIP
Image storage	﹥50,000 framesrames
Cine loop	Auto 512 frames
Image/video format	AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
Scan angle	60-160 degrees, depending on probe
Scan depth	40mm~300mm, depending on probe
Dynamic range	≥120dB, 4-level adjustabletableable
Image flip	up/down, left/right, black/ white, 90/180/270°0°eg;0°
Annotation	date, time, name, sex, age, doctor, hospital name, etc
Peripheral port	Video, S-video, USB2.0, DICOM3.0, VGA

Standard Accessary
YSD2100-05 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe

Probes

3.5Mhz abdominal probe

6.5Mhz transvaginal probe

7.5Mhz linear probe

3.5MHz micro-convex probe

5.0 MHz micro-convex probe

7.5Mhz rectum probe
