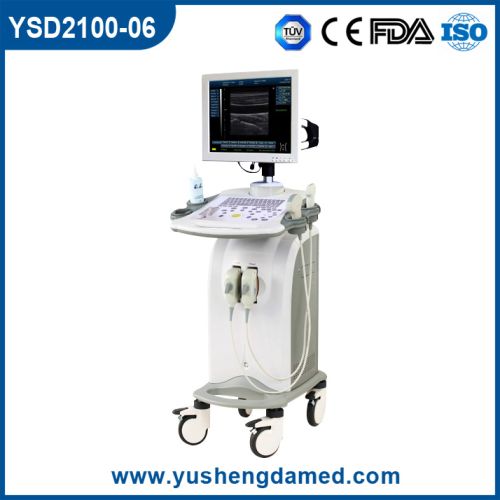

Ysd2100-06 PC Platform Based Ce Approved Digital Trolley Ultrasound
| Model NO. | YSD2100-06 |
| Type | Ultrasound Scanner |
| Group | Middle-aged and Old |
| Medical Devices Reg./Record No. | 20142230425 |
| Type. | Trolley Ultrasound Scanner |
| Color | White |
| Gray Scale | 256 Level |
| Body Marke | 123 Types |
| OEM | Acceptable |
| Transport Package | in Wooden Box Packing |
| Origin | Chengdu |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS, FDA, EEC, MSDS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Monitor | 15 Inches High Resolution LED |
| Probe Connector | 2 |
| Tgc | 8-Segment Tgc |
| Exporting Market | All The World |
| Manufacture | Yes |
| Trademark | YSD |
| Specification | CE MD ISO 13485 |
| HS Code | 90181210 |
Main Feature
15' LCD display, environment protectiontection
Multi-frequency probe
2 activated probe ports, easy probe switch
8-segment TGC, precise adjustment of near/far gain
Embed PC, stability, security and connectivity
Abundant diagnostic software packages, satisfying different clinical requirement
Various peripheral ports, flexible expansion solutions
Smart 3D imaging (option), vivid presentation of fetus face
Technical specifications
Standard Accessary
YSD2100-05 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
15' LCD display, environment protectiontection
Multi-frequency probe
2 activated probe ports, easy probe switch
8-segment TGC, precise adjustment of near/far gain
Embed PC, stability, security and connectivity
Abundant diagnostic software packages, satisfying different clinical requirement
Various peripheral ports, flexible expansion solutions
Smart 3D imaging (option), vivid presentation of fetus face
Technical specifications
| Safety standard | IEC 60601-1, 60601-1-2, EN 60101 |
| AC | 110-220V, 50/60Hz, ±10%lusmn;10%usmn;10% |
| Monitor | 15' High resolution CRTion CRT |
| TGC | 8 segments |
| Body mark | 123 types |
| Gray scale | 256 |
| Scanning method | electronic convex/linear/micro-convex |
| Probe | electronic convex/linear, broadband, multi-frequency, THI on all probes |
| Clinical application | General, Obstetric, Gynecology, Cardiology, Urology, Small organ, etc |
| Display mode | B, 2B, 4B, B/M, M |
| Zoom | continuously, real-time dynamic PIP |
| Image storage | ﹥50,000 framesrames |
| Cine loop | Auto 512 frames |
| Image/video format | AVI, JPG, BMP, PNG, TIF, DCM (DICOM) |
| Scan angle | 60-160 degrees, depending on probe |
| Scan depth | 40mm~300mm, depending on probe |
| Dynamic range | ≥120dB, 4-level adjustabletableable |
| Image flip | up/down, left/right, black/ white, 90/180/270°0°eg;0° |
| Annotation | date, time, name, sex, age, doctor, hospital name, etc |
| Peripheral port | Video, S-video, USB2.0, DICOM3.0, VGA |
Standard Accessary
YSD2100-05 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
| Probes |
| 3.5Mhz abdominal probe |
| 6.5Mhz transvaginal probe |
| 7.5Mhz linear probe |
| 3.5MHz micro-convex probe |
| 5.0 MHz micro-convex probe |
| 7.5Mhz rectum probe |
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
