Measurement and calculation
B mode:distance, circumstance/area, volume, angle, ratio, stenosis, histogram, cross section, hip joint angle;
M mode:heart rate, time, distance, speed, slope;
Abdominal measurement:Liver, gallbladder, L/R kidney, pancreas, spleen;
Gynecological measurement: uterus, cervix, endometrium, L/R ovary, L/R follicle;
Obstetric:gestation age, fetal weight, AFI;
cardiology:LV,LV function,LVPW, RVAWT;
Urology:bladder volume, RUV,prostate, kidney;
Small organs:optic, thyroid, jaw and face, neck;
Technical Specification
Connectors of transducers: 4
USB devices, VIDEO OUT, VGA, DICOM3.0
Monitors:15 inch high-resolution TFT LED monitor
Dimension:800mm´545mm´ 1375mm(A85)e; 1375mm(A85); 1375mm(A85)
Weight:About 54-81kg
Display mode:
B,B/B,B/M,M,4B,9B, ZOOM;
Real-time Zoom on B mode
gray scale:256 level gray scale
Image processing:
Pre-processing, after-processing, dynamic range, frame correlation, line average, edge enhancement, Black/White inversion, Up/Down inversion, Gray scale adjustment, contrast, brightness, gamma correction, noise reduction.
Gain: Adjustable within 0~100dB
Time gain control(TGC):8 segment adjustment,B, B/B, M, 4B adjustment separately.
Cine loop:64,128,256,512 and 1024 frame to choose
Auto/manual cine loop
Storage
Image storage, cine loop, storage capacity ≥10G. Measurement result and report can be stored.red.red.
Patient information management:
Diagnosis case management, report print, comment library, image output(USB),import data.
Marks:
comment,body mark(140 kinds for different parts' option),arrow.
Zoom:
10 ratio: 1.5,2.0,2.5,3.0,3.5,4.0,4.5,5.0,5.5,6.0
positioning of stone crashing:With positioning of stone crashing function
color displaying:More than 22 color displaying
multi-frequency check
5 segment frequencies+ THI for check
Angle scanning:There are 25%, 30%, 35%100% altogether 16 angles for scanning
Image direction:Up/down/left/right and polarity reversion
Dynamic range:Continuous adjustable:30~120dB, 16 levels in all.
Contrast:0-100 continuous adjustable
DICOM Real-time Ethernet transmission(option)
This option allows real-time transmission by Ethernet. Ethernet-capable allows local and internet ultrasound data transmission. It provides time information and data transmission synchronization to realize shared transmission of ultrasound image and video through Internet.
System preset :
includes parameter presets of abdominal , GYN, OB ,vascular, cardiac, small organs, andrology, urology, comments, manufacture default settings, system upgrade and maintenance settings.
Standard Accessary

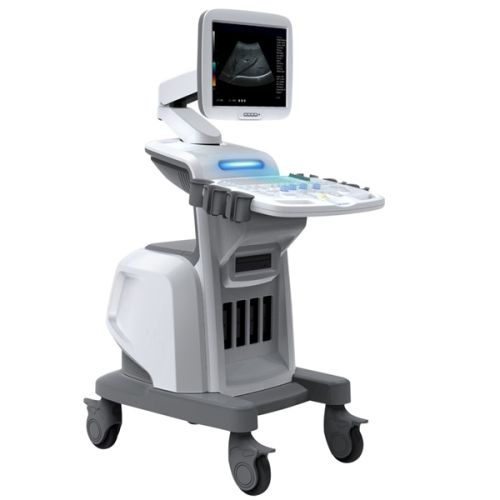

YSD2200 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
