Specifications
CE marked
PSA Technology
Adjustable flowrate
Large LCD display
Nebulizer, purity indicator, pulse oximeter, high temp alarm

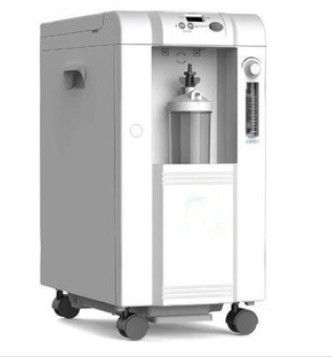

Oxygen concentrator with two bottle:
ModelJAY-8
Flow rate0-8L/min
Purity93± 3%usmn; 3%usmn; 3%
Outlet Pressure (Mpa)0.04-0.07
Sound Level≤ 50db50db50db
Power
AC220V± 10%, 50/60± 1Hz; AC110V± 10%, 50/60± 1Hzlusmn; 10%, 50/60± 1Hzmn; 1Hzlusmn; 10%, 50/60± 1Hz
Power Consumption≤ 480W480W480W
Timer
Present Working Time, Accumulating Time, Presetting Time from 10mins to 40hours
Alarm
Power failure alarm, High&Low pressure alarmalarmalarm
Net Weight25Kgs
Size (mm)365× 375× 600mm× 600mm 600mm× 600mm
ALTERNATIVELY
*Nebulizer
*Low purity alarm: When oxygen purity is above 82%, it will give green light; When the purity is blow 82%( 82% not included), it will give red light
*Maintenance alarm: Alarm for maintenance after 3000 hours operation
*Alarm for high temperature inside systems above 50° Ceg; Ceg; C
*Pulse oximeter: Fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
*Small LCD display: Accumulating time; Present working time presetting time. *Dual Flows
