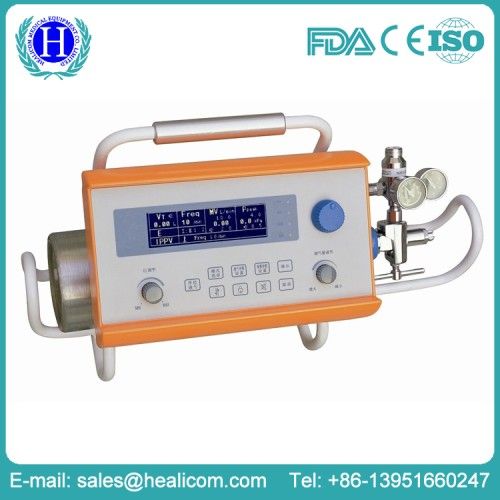

Breathing Machine Ce Approved Portable Ventilator (HV-100E)

1-1800 USD

Model NO.	HV-100E
Certification	CE, ISO13485
Power	AC 110~22ov±10%,DC 12V 1.5A 12V 1.5A12V 1.5A
Tidal Volume	0~1.5L
Frequency	4~99/Min. (1~40/Min Under Simv)
Transport Package	Carton
Origin	China
Type	Ventilator
Group	Adult&Childrenildrenldren
Mode	Ippv, Ippv+Sigh, A/C (Sippv), Simv, Spont, Manual
Ventilation Volume Per Minute	0L~20L
Trademark	Healicom
Specification	CE
HS Code	9019200000

Main Feature
l Gas driven electronically controlled.
l Time switch, volume control, pressure limit ventilation mode.
l I:E function
l LCD display ventilation parameters, preset parameters alarm indication and breathing waveform
l Applied for adult and child

Main Specification
Power	AC 110~22OV±10%,50 Hz~60Hz±1Hz, DC 12V 1.5AHz, DC 12V 1.5AHz, DC 12V 1.5A
Mode	IPPV, IPPV+SIGH, A/C (SIPPV), SIMV, SPONT, MANUAL
Tidal volume	0~1.5L
Ventilation volume per minute	0L~20L
Frequency	4~99/min. (1~40/min under SIMV)
I/E Ratio	3:1~1:5
Pressure trigger sensitivity	-2~0 kPa , PEEP(OPTIONAL)
O2 concentration	48~100% adjustable.
Pressure limitation	1~5.5KPa
Safety Pressure	≤6KPa6KPa6KPa
Alarms	No VT, MV too high (low), Airway pressure too high (low), AC power off, back-up battery too low, audio alarms or prompt hints
Monitoring Parameters	Tidal volume, Minute volume, Breathing rate, Airway pressure
Gas source	Oxygen or Purify air
Working Pressure: 0.4Mpa	Allowable range: 0 .3~0.5MPa
O2 cylinder	3L (Max Pressure 15MPa)
Internal back-up battery	DC 12V ≥2 hours.urs.urs.
Net Weight	3.5Kg
Dimensions	310mm x 190mm x 115mm (L x H x W)
Reserve Condition: Temperature:-10~40ºC, Relative humidity: ≤90%: ≤90%90%: ≤90%
Working condition: Temperature:5~40ºC, Relative humidity:≤80%y:≤80%80%y:≤80%
