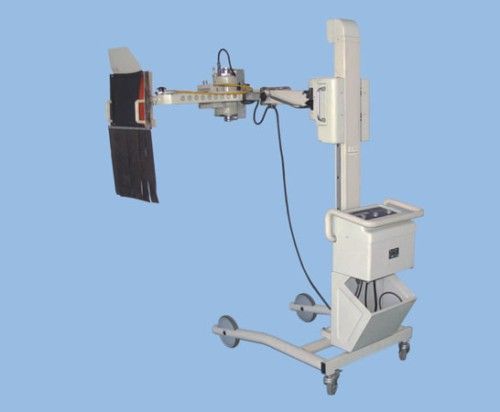

30mA Digital Display Movable Medical X-ray Machine (F30IV)
bargain
add to cart| Model NO. | F30IV |
| Type | X Ray Equipment |
| Medical Devices Reg./Record No. | Jyjxzz20062300402 |
| Frequence | 50Hz |
| Nominal Electric Power | 3kw |
| Trademark | MAYA |
| Origin | China |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS |
| Product Name | 30mA Digital Display Movable Medical X-ray Machin |
| Maximum Rated Capacity | 85kvp, 30mA |
| Fluorescent Screen Size | 280mmx350mm |
| Transport Package | Export Wooden Box |
30mA Movable Medical X-ray Machinedigital Display (F30IV)
1, 30mA Movable Medical X-ray MachineDigital display(F30IV), mobile X-ray equipment for hospitals, x ray unit -MAYA
2, Used to diagnose early mamma pathological changes3, Shockproof, single focus
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
1, 30mA Movable Medical X-ray MachineDigital display(F30IV), mobile X-ray equipment for hospitals, x ray unit -MAYA
2, Used to diagnose early mamma pathological changes3, Shockproof, single focus
| Power Supply | voltage | 180~240V single-phase |
| frequence | 50Hz | |
| currency | Fluoroscopy 3A (continuous) | |
| Radiograph 16A (momentary) | ||
| Power lines internal resistance | ≤ 0.7Ω0.7ΩOmega;0.7Ω | |
| Maximum rated capacity | 85kVp, 30mA | |
| Nominal electric power | 3kW | |
| Fluorescent screen size | 280mm× 350mm; 350mm; 350mm | |
| Type of the X-ray tube | Model | XD1- 3/100 stationary anode, single focus |
| voltage | 90kVp | |
| focus | 2.3mm× 2.3mm; 2.3mm; 2.3mm | |
| Filament heating specifications | If 4.5A Uf 7V | |
| length | 160mm | |
| Leakage current, grounding resistance, voltage insulation with the standard GB9706 , 1-95 | ||
| The insulation performance of Transformer oil , used by the combination head, may not be lower than 2.5mm/25000V | ||
