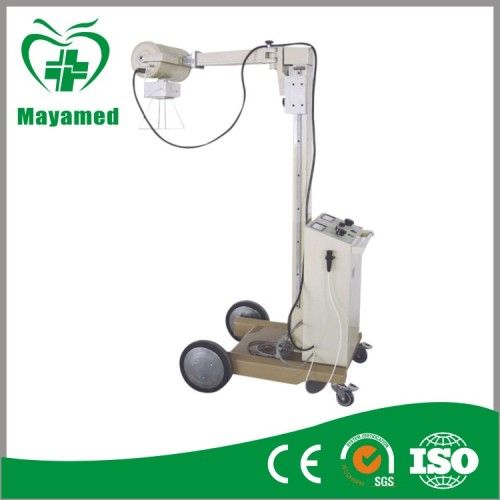

50mA Movable Medical X-ray System (F50-100)
1, 50mA Movable Medical X-ray System(F50-100)), mobile X-ray equipment for hospitals, x ray unit -MAYA
2, X-ray radiography for hospital wards and emergency room. Combined with X-ray device, single-focus, full-wave rectification. Designed sophisticated, safe, reliable, flexible and radio-controlled device. (remote area ≥ 5 m) 5 m)5 m)
GENERAL |
Can be used in ward and emergency treatment room |
X-ray generator is combined |
Single focus, bridge rectification. |
It is precise, safe, reliable and flexible |
A wireless remote control device (control range≥ 5 m) is usedusedused |
MAIN TECHNICAL PARAMETER |
X-ray generator | Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit. |
Max rated capability | Current | 50mA | 30mA |
Voltage | 90kVp | 90kVp |
Time | 2s | 6.3 s |
Power supply | Voltage | 180~240V |
Frequency | 50Hz |
Power | not lower than 5kVA |
Resistance | not larger than 1ΩΩOmega;Ω |
Voltage adjustment range of x-ray tube | 45~90kVp (divided into 10 steps) |
Range of the timer | 0.08~6.3 s |
Distance between the focus to the ground | 600~1630 mm |
X-ray tube | Longitudinal movement | 240mm |
Transverse rotation | ± 60°smn; 60°deg;smn; 60° |
Specification of X-ray tube | Stationary anode, single focus |
Transport dimension, Weight | 103× 76× 204(cm), NET 150kg/GROSS 220kgg/GROSS 220kgg/GROSS 220kg |
