400mA Double Tube Double Table X Ray Machine

bargain

Model NO.	MY-D015
Type	X Ray Equipment
Group	All
Name	400mA Double Tube Double Table X Ray Machine
Transport Package	Export Wooden Box
Classification	Imaging Diagnostic Equipment
Certification	CE
Medical Devices Reg./Record No.	Jyjxzz20062300402
Trademark	MAYA
Origin	China

1, 400mA Medical x ray Machine(KD400), X-ray equipment for hospitals, X-ray equipment is list here.

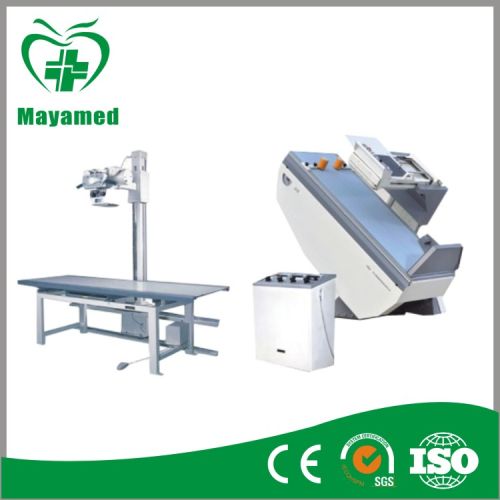

KD400 400mA Medical x ray Machine
1)Double diagnostic table and double X-ray tube2) Bigger scope of rotation diagnostic table
Features
1) Equipped with double diagnostic table and X-ray rubes, tube voltage is 125kV, tube currency is 400mA, single direct bridge full-wave commutation.
2) X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, X-ray tube over-hot protecionare provided, ensure X-ray tube run safely long time, improve accuracy of kV MA S.
3) Bigger scope of rotation diagnostic table, movable table multi-item spot-film device, easy to operate, radiation proof, ensure operate and the tested.
4) Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box, use conveniently and it is beautiful.
5) Applied in all kinds of hospital for radiography such as general body, beam filtration, and chest.
Technology parameters

Department	Technology parameters
High voltage generator control table and high voltage transform assemble	Fluoroscopy	Tube currency	0.3-5mA continuous currency
		Tube voltage	45-110KV continuous voltage
	Radiography	Tube currency	50-400mA shift
		Tube voltage	45-125KV continuous voltage
		Exposure time	0.03-5s, 23 shift
	Power	Voltage	380V± 10%smn; 10%smn; 10%
		Frequency	50Hz± 1Hzsmn; 1Hzsmn; 1Hz
		Capacity	≥ 30KVA0KVA0KVA
		Inner resistance	≤ 0.45Ω.45ΩOmega;.45Ω
X-ray assembly	Type of x-ray		XD51-20.40/125KV
	Focus		1× 1.2× 2 double focal double focal double focal
	Rated rotate speed of anode		2800r/min
Changed beam limited device	Diagnosis table YS09D		Automatic, adjusted field of view
	Radiograph table YS11S		Manually adjusted field of view, luminosity≥ 100LX00LX00LX
C15 Diagnostic table	Rotate of table		-15° ~0° ~90° automaticeg; automaticeg; automatic
	Moving table		Automatic 700mm distance moving length ways
	Distance of focal table		400mm
	High of table		820mm
	Spot film device	Scope moving	Up and down	600mm
			Left and right	± 100mmn; 100mmn; 100mm
			Forward and backward	300mm
		Way of locking	Electromagnetism locking

CDGI Multi function radiography table	Moving table	Length ways	± 600mmn; 600mmn; 600mm	Electromagnetism locking
		Across	± 120mmn; 120mmn; 120mm
	Mobile beam filtration grid	Grid density	28L/cm
		Grid ratio	8: 1
		Focusing distance	100cm
		Scope of moving	≥ 600mm00mm00mm
	Radiography item		5' ' × 7' ' , 8' ' × 10' ' , 10' ' × 12' ' , 11' ' × 14' ' ,' , 11' ' × 14' ' ,4' ' ,' , 11' ' × 14' ' , 12' ' × 15' ' , 14' ' × 14' ' , 14' ' × 17' '14' ' × 17' ' 17' '14' ' × 17' '
	Distance from surface to film		75mm
	Height of bed		700mm
	Moving pillar		± 180° , per 90° orientation, moving length ways ≥ 1500mmth ways ≥ 1500mm0mmth ways ≥ 1500mm
	Bulb tube		Rotate the cross arm± 180, ascend $ descend 1100mmd 1100mmd 1100mm

Option

LSJ pillar radiography frame	The scope of ascend and descend	1450mm
	The minimum distance from focal spot	380mm

	Fixed beam filtration role	Grid density	40L/cm
		Grid radio	10: 1
		Focal distance	180cm
