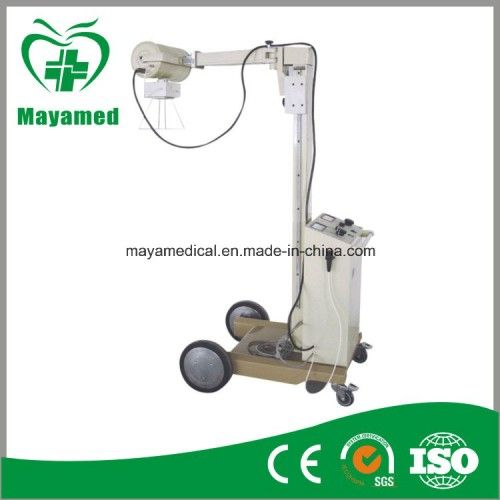

My-D007 100mA Precise Medical X-ray Equipment

bargain

Model NO.	MY-D007
Type	X Ray Equipment
Group	All
Voltage Adjustment Range of X-ray T	50~90kvp
Distance Between The Focus to The	700~1780 mm
Weight	Net: 190kg/ Gross: 250kg
Transport Package	Export Wooden Box
Classification	Imaging Diagnostic Equipment
Certification	CE
Medical Devices Reg./Record No.	Jyjxzz20062300402
Range of The Timer	0.08~6.3 S
Transport Dimension	123× 90× 204(Cm)times; 204(Cm)imes; 204(Cm)
Trademark	MAYA
Origin	China

100mA Movable Medical X-ray System(F100 ), Maya is the best supplier for you to purchasing Medical Mobile X-ray Equipment, x ray unit.

GENERAL

Can be used in ward and emergency treatment room.

. X-ray generator is combined

Single focus, bridge rectification.

. It is precise, safe, reliable and flexible

A wireless remote control device (control range≥ 5 m) is usedusedused

MAIN TECHNICAL PARAMETER
X-ray generator	Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.
Max rated capability	Current	15mA	30mA	60mA	100mA
	Voltage	90kvp	90kvp	90kvp	80kvp
	Time	6.3s	6.3s	4.0s	3.2s
Power supply	Voltage	180~240V
	Frequency	50Hz
	Power	not lower than 7kVA
	Resistance	not larger than 1ΩΩOmega;Ω
Voltage adjustment range of x-ray tube	50~90kVp
Range of the timer	0.08~6.3 s
Distance between the focus to the ground	700~1780 mm
X-ray tube focus transverse rotation	± 60°smn; 60°deg;smn; 60°
Specification of X-ray tube	XD4 2.9/100 Stationary anode, single focus
Transport dimension, Weight	123× 90× 204(cm), NET: 190kg/ GROSS: 250kg GROSS: 250kg GROSS: 250kg
