500mA Medical X-ray Machine (KB500R(CDG)
bargain
add to cart| Model NO. | KB500R(CDG |
| Type | X Ray Equipment |
| Medical Devices Reg./Record No. | Jyjxzz20062300402 |
| Transport Package | Export Wooden Box |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE |
| Trademark | MAYA |
| Origin | China |
Medical X-ray machine(KB500R(CDG) ), X-ray equipment for hospitals, X ray unit -MAYA

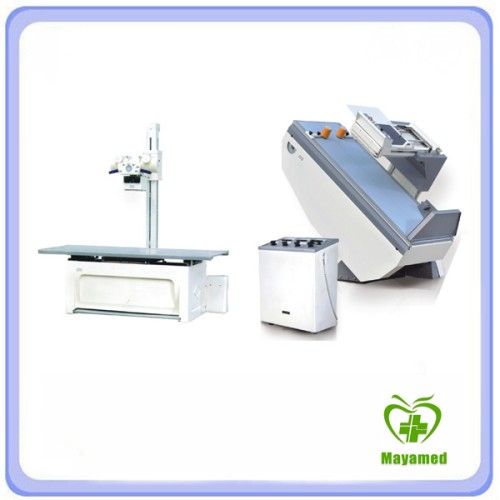

Medical X-ray machine(KB500R(CDG)
1) Equipped with single diagnostic table and X-ray rubes, single direct bridge full-wave commutation, tube voltage is 125kV, tube currency is 500mA.
2) Total 540 storage combination controlled by element such as kV mA S is applied radiography for the following filed three body position, fat middle and thin body type, automatic detect and display cod of mistake in system, send warning signal, detect accuracy and maintain.
3) X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, X-ray tube over-hot protectorate provided, ensure X-ray tube run safely long time, improve accuracy of kV mA S.
4) Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box, use conveniently and it ispretty
5) Applied in all kinds of hospital for radiography such as general body, beam filtration, and chest.
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
Medical X-ray machine(KB500R(CDG)
1) Equipped with single diagnostic table and X-ray rubes, single direct bridge full-wave commutation, tube voltage is 125kV, tube currency is 500mA.
2) Total 540 storage combination controlled by element such as kV mA S is applied radiography for the following filed three body position, fat middle and thin body type, automatic detect and display cod of mistake in system, send warning signal, detect accuracy and maintain.
3) X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, X-ray tube over-hot protectorate provided, ensure X-ray tube run safely long time, improve accuracy of kV mA S.
4) Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box, use conveniently and it ispretty
5) Applied in all kinds of hospital for radiography such as general body, beam filtration, and chest.
| Department | Technology parameters | |||||||||
| High voltage generator control table and high voltage transform assemble | Power | Voltage | 380V± 10%smn; 10%smn; 10% | |||||||
| Capacity | 50Hz± 1Hzsmn; 1Hzsmn; 1Hz | |||||||||
| Frequency | ≥ 32KVA2KVA2KVA | |||||||||
| Inner resistance | ≤ 0.3Ω0.3Ω0.3Ω | |||||||||
| Tube voltage | 45-125kV step 1kV | |||||||||
| Tube currency | 30-500mA 8 shift | |||||||||
| Exposure time | 0.01-5.0S 25 shift | |||||||||
| Max rated capacity | mA | 600 | 500 | 400 | 500 | 400 | ||||
| kV | 71 | 84 | 106 | 84 | 106 | |||||
| X-ray assembly | Type of x-ray | XD52-30.50/125 | ||||||||
| Focus | 1× 1.2× 2 double focal double focal double focal | |||||||||
| Rated rotate speed of anode | 2800r/min | |||||||||
| Manually beam limited device | Model | Manually continuous adjusted field of | ||||||||
| Field view | View, luminosity≥ 100LX, 1minlimit-time devicevicevice | |||||||||
| CDG Multi function radiography table | Moving table | Lengthways | ± 600mmn; 600mmn; 600mm | Electromagnetism locking | ||||||
| Across | ± 120mmn; 120mmn; 120mm | |||||||||
| Mobile beam filtration grid | Grid density | 28L/cm | ||||||||
| Grid ratio | 8: 1 | |||||||||
| Focusing distance | 100cm | |||||||||
| Scope of moving | ≥ 600mm00mm00mm | |||||||||
| Radiography item | 5″ × 7″ , 8″ × 10″ , 10″ × 12″ , 11″ × 14″ ,; 10″ , 10″ × 12″ , 11″ × 14″ , 12″ , 11″ × 14″ ,; 10″ , 10″ × 12″ , 11″ × 14″ , 12″ × 15″ , 14″ × 14″ , 14″ × 17″″ × 14″ , 14″ × 17″Prime; , 14″ × 17″″ × 14″ , 14″ × 17″ | |||||||||
