Medical X-ray Radiography (KD400R(CDGI))

bargain

Model NO.	KD400R(CDGI)
Type	X Ray Equipment
Group	All
Trademark	MAYA
Origin	China
Classification	Imaging Diagnostic Equipment
Certification	CE
Medical Devices Reg./Record No.	Jyjxzz20062300402
Transport Package	Export Wooden Box

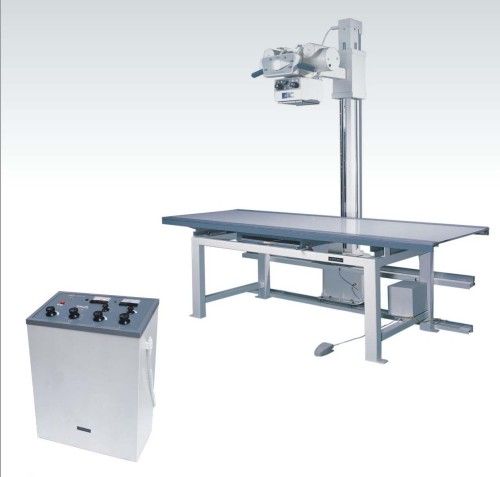

1, MEDICAL X-ray RADIOGRAPHY(KD400R(CDGI) ), X-ray equipment for hospitals, x ray unit -MAYA
1) Equipped with single diagnostic table and X-ray rubes, single direct bridge full-wave commutation, tube voltage is 125kV, tube currency is 400mA.
2) X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, X-ray tube over-hot protectorate provided, ensure X-ray tube run safely long time, improve accuracy of kV mA S.
3) Bigger scope of rotation diagnostic table, movable table muli-item spot-film device, easy to operate, radiation proof, ensure operate and the tested.
4) Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box, use conveniently and it iswonderful.
5) Applied in all kinds of hospital for radiography such as general body, beam filtration, and chest.

Department	Technology parameters
High voltage generator control table and high voltage transform assemble	Fluoroscopy	Tube currency	0.3-5mA continuous currency
		Tube voltage	45-110KV continuous voltage
	Radiography	Tube currency	50-400mA shift
		Tube voltage	45-125KV continuous voltage
		Exposure time	0.03-5s, 23 shift
	Power	Voltage	380V± 10%smn; 10%smn; 10%
		Frequency	50Hz± 1Hzsmn; 1Hzsmn; 1Hz
		Capacity	≥ 30KVA0KVA0KVA
		Inner resistance	≤ 0.3Ω0.3ΩOmega;0.3Ω
X-ray assembly	Type of x-ray		XD51-20.40/125
	Focus		1× 1.2× 2 double focal double focal double focal
	Rated rotate speed of anode		2800r/min
CDGI Multi function radiography table	Moving table	Lengthways	± 600mmn; 600mmn; 600mm	Electromagnetism locking
		Across	± 120mmn; 120mmn; 120mm
	Mobile beam filtration grid	Grid density	28L/cm
		Grid ratio	8: 01
		Focusing distance	100cm
		Scope of moving	≥ 600mm00mm00mm
	Radiography item		5″ × 7″ , 8″ × 10″ , 10″ × 12″ , 11″ × 14″ ,; 10″ , 10″ × 12″ , 11″ × 14″ , 12″ , 11″ × 14″ ,; 10″ , 10″ × 12″ , 11″ × 14″ ,
			12″ × 15″ , 14″ × 14″ , 14″ × 17″″ × 14″ , 14″ × 17″Prime; , 14″ × 17″″ × 14″ , 14″ × 17″
	Distance from surface to film		75mm
	Height of bed		700mm
	Moving pillar		± 180° , per 90° orientation, moving lengthways ≥ 1500mmgthways ≥ 1500mm0mmgthways ≥ 1500mm
	Bulb tube		Rotate the cross arm± 180, ascend $ descend 1100mmd 1100mmd 1100mm
Option
LSJ pillar radiography frame	The scope of ascend and descend		1450mm
	The minimum distance from focal spot		380mm
	Radiography item		8' ' × 10' ' 10' ' × 12' ' 11' ' × 14' ' 12' ' × 15' ' 14' ' × 14' ' 14' ' × 17' '' ' × 14' ' 14' ' × 17' 'times; 17' '' ' × 14' ' 14' ' × 17' '

	Fixed beam filtration role	Grid density	40L/cm
		Grid radio	10: 01
		Focal distance	180cm
