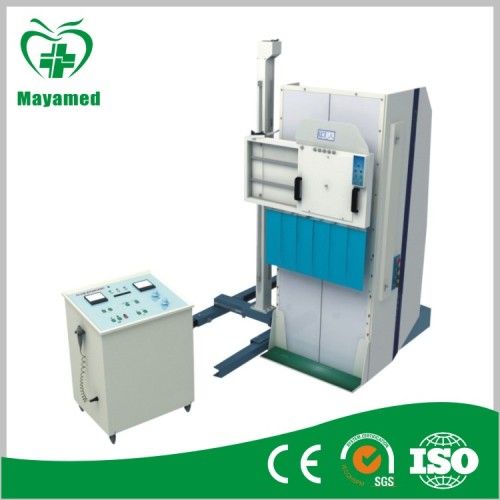

My-D012 200mA Medical Diagnostic X-ray Unit (KH200M)

bargain

Model NO.	MY-D012
Certification	CE, SGS
Medical Devices Reg./Record No.	Jyjxzz20062300402
Trademark	MAYA
Origin	China
Classification	X-ray Machine
Group	Hospital
Maximum Tube Voltage	120kv
Transport Package	Export Wooden Box

MY-D012 200mA Medical X-ray Unit
1, 200mA Medical X-ray Unit(KH200M ), X-ray equipment for hospitals, X-ray equipment is list here.
Detailed Product Description
1, KH200M 200mA Medical X-ray model2, Special in radiography 3, tube currency is 200mA
Features
Single diagnostic table and single X-ray tube with rotated anode KV, MA and a interlocking protection and radiograph time-limited protection are provided Filament for stabilizing voltage, space charge compensation and anode starting-up protection device are provided Voltage of power supply and KV with digital display can be adjusted constantly and respectively.
It becomes convenient to install without above-ground railway and be operated easily Electromagnetism are provided for pillar length ways, crosswise, and sleeve moving up and down.
Frame:
Control Table, Diagnostic Table / Radiograph Device for Stomach and Intestine, High Voltage Transformer Assembly, High Voltage Cable, X-ray Tube Assembly

Description	Technology Parameters
Power Supply	Voltage	A. C. 380V / 220V (± 10%)mn; 10%)mn; 10%)
	Frequency	50Hz ± 1Hzsmn; 1Hzsmn; 1Hz
	Capacity	20KVA
	Power Supply Resistance	A. C. 380V≤ 1.0Ω ; A. C. 220V≤ 0.3Ω220V≤ 0.3Ω.3Ω220V≤ 0.3Ω
Maximum tube voltage			120KV
Maximum tube currency			200mA
Fluoroscopy	Tube voltage	40~110KV
	Tube currency	0.5~5mA
Radiograph	Tube voltage	40~120KV
	Tube currency	Small Focus 50mA, 100mA; Big Focus100, 150, 200mA
	Spot film	100mA (Small Focus)
	Time	0.04~6.3s Divided into 23 grades from 0.04~6.3s
High Voltage Generator	Capacity	20KVA
X-ray Tube	Model	XD 51_ 20, 40 / 125
	Focus	Small Focus 1× 1mm2 Big Focus 2× 2mm22× 2mm2; 2mm22× 2mm2
	Rotated Speed of anode	2800r / min

Diagnostic Table	Scope of rotation	90° ~ 0° ~-5°deg; ~-5°deg;deg; ~-5°
	Mobile beam filtration device	Grid density N=28
		Focus Distance f o﹥ 1000mm00mm
		Grid Ratio r=8
	Distance from surface to film	≤ 60mm60mm60mm
Stomach & Intestine Radiograph Deviceeviceevice	Spot film device specification(Stomach & Intestine Radiograph)raph)raph)	127× 178mm( 5' ' × 7' ' ) binary pictureinary pictureinary picture
		203× 254mm( 8' ' × 10' ' ) binary pictureinary pictureinary picture
		254× 305mm(10' ' × 12' ' ) binary pictureinary pictureinary picture
		280× 356mm(11' ' × 14' ' ) quartering picturetering pictureering picture
	Moving length ways (along ground railway)	1500mm
	Moving crosswise (left & right)ight)ight)	740mm
	Moving up and down	700mm ~ 1900mm
	Way of locking	Electromagnetism locking
Beam Limited Device		Manually single automatic multi -optional
