Kh200d 200mA Endurance Medical X-ray Machine

Kh200d 200mA Endurance Medical X-ray Machine

bargain

add to cart
Model NO. KH200D
Medical Devices Reg./Record No. Jyjxzz20062300402
Rotated Speed of Anode 2800r / Min
Trademark MAYA
Origin China
Certification CE, SGS
Model Xd 51_ 20, 40 / 125
Maximum Tube Currency 200mA
Transport Package Export Wooden Box

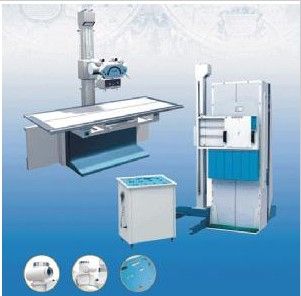

200mA Medical X-ray Machine (KH200D)
1, 200mA Medical X-ray Machine(KH200D), X-ray equipment for hospitals, x ray unit
1. KH200D 200mA Medical X-ray model2, Special in radiograhpy3, tube currency is 200mA
Features
Double diagnostic table and double X-ray tube with rotated anode.
KV, mA and a interlocking protection and radiograph time-limited protection devices are provided.
Filament for stabilizing voltage, space charge compensation and anode starting-up protection device are provided.
Voltage of power supply and kV with digital display can be adjusted constantly and respectively.
It becomes convenient to install without above-ground railway and be operated easily.
Electromagnetism are provided for pillar lengthways, crosswise, and sleeve moving up and down.
Description Technology Parameters
Power Supply Voltage A. C. 380V / 220V (± 10%)mn; 10%)mn; 10%)
Frequency 50Hz ± 1Hzsmn; 1Hzsmn; 1Hz
Capacity 20KVA
Power Supply Resistance A. C. 380V≤ 1.0Ω ; A. C. 220V≤ 0.3Ω220V≤ 0.3Ω.3Ω220V≤ 0.3Ω
Maximum tube voltage 125KV
Maximum tube currency 200mA
Fluoroscopy Tube voltage 40~110KV
Tube currency 0.5~5mA
Radiograph Tube voltage 40~125KV
Tube currency Small Focus: 25mA, 50mA, 100mA; Big Focus: 150, 200mA
Spot film 100mA (Small Focus)
Time 0.04~6.3s Divided into 23 grades from 0.04~6.3s
High Voltage Generator Capacity 15KW
X-ray Tube Model XD 51- 20, 40 / 125
Focus Small Focus 1× 1mm2 Big Focus 2× 2mm22× 2mm2; 2mm22× 2mm2
Rotated Speed of anode 2800r / min
Diagnostic Table Scope of rotation 90° ~ 0° ~-5°deg; ~-5°deg;deg; ~-5°
Mobile beam filtration device Grid density N=28
Focus Distance f ﹥ 1000mm00mm
Grid Ratio r=8
Distance from surface to film ≤ 60mm60mm60mm
Stomach & Intestine Radiograph Deviceeviceevice Spot film device specification(Stomach & Intestine Radiograph)raph)raph) 127× 178mm( 5' ' × 7' ' ) binary pictureinary pictureinary picture
203× 254mm( 8' ' × 10' ' ) binary pictureinary pictureinary picture
254× 305mm(10' ' × 12' ' ) binary pictureinary pictureinary picture
Moving lengthways (along ground railway) 1500mm
Moving crosswise (left & right)ight)ight) 740mm
Moving up and down 700mm ~ 1900mm
Way of locking Electromagnetism locking
Beam Limited Device Manually single automatic multi-optional
Table for radiograph Length× width× heighttimes; heighttimes; height 2000× 760× 680(mm)imes; 680(mm)imes; 680(mm)
Movable scope of the bed Lengthways: ± 450mm;; 450mm;; 450mm;
Crossways: ± 110smn; 110smn; 110
Pillar moves lengthways 1000mm
Distance from surface to film ≤ 60mm60mm60mm
Bulb tube moves up and down 1100mm~1760mm
Radiography item 10' ' × 12' ' 11' ' × 14' ' 12' ' × 15' '12' ' × 15' ' 15' '12' ' × 15' '
