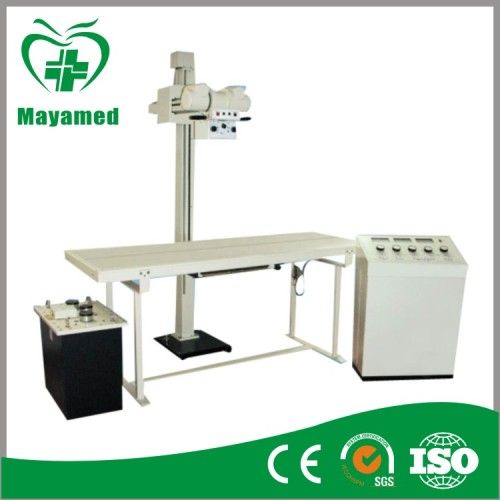

Maya Medical 125mA Medical X-ray Device

bargain

Model NO.	MY-D009
Type	X Ray Equipment
Group	All
Name	125mA Medical X-ray Device
Trademark	MAYA
Origin	China
Classification	Imaging Diagnostic Equipment
Certification	CE
Medical Devices Reg./Record No.	Jyjxzz20062300402
Max DC Output Current	125mA
Transport Package	Export Wooden Box

1, 125mA Medical X-ray model, X-ray equipment for hospitals, x ray unit -MAYA
USE
General radiography, Filter-ray device radiograph
Unit Configuration
Control, HT generator unit, Ht cable, X-ray tube unit, Diagnostic table, Collimator
MAIN CHARACTERIDTICS
1, Single table and single tube
2, Design according to the electric mechanism of middle-size machine, The function is reasonable
3, High-tension system is of split structure, with high-voltage generator of full-wave rectification and stable operation
4, Supply voltage (V), photograph kilovolt (kv) and stepless adjust able
5, Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to ensure the stable and accurate output
6, Equipped with the capacity limitation and portection circuit and KV mA S interlock limitation and protection
7, The timer circuit grade according to R10 priority coefficient and an exact time control
8, The radiograph flat table has a vibrating ray-filter
9, The pillar hast has only the bottom track only, with easy installation

Supply power	Voltage		single phase 220V/380V± 10%smn; 10%smn; 10%
	Frequency		50Hz± 0.5Hzn; 0.5Hzn; 0.5Hz
	Capacity		10KVA
	Intemal resistance		380v: 2Ω , 220V: 0.6Ω (2Ω at80v; 06Ω at220V) at80v; 06Ω at220V)t220V) at80v; 06Ω at220V)
Max DC output voltage			90KV
Max DC output current			125mA
Radiograph	Voltage		50-90KV
	current		Small focus 15mA , big focus30mA 60mA 100mA 125mA
	spot film		100mA(fixed)
	time		0.04-6.3s, 24grades together
High-voltage generator	Capacity		7KVA
X-Ray tube	Model		XD4-2.9/100
	Focus		Small focus 1.8mm big focus4.3mm
Radiograph table	Bed face (L× W× H); W× H)es; H); W× H)		1960× 660mm× 700mm× 700mm 700mm× 700mm
	Bucky		Grid density N28
			Convergence distance fo 100cm
			Grid ratio
Max size of cassette	356mm× 432mm(14″ × 17″ )rime; × 17″ ) 17″ )rime; × 17″ )
Pollar of X-ray source unit	Moving in length (along The bottom table )			﹥ 1350mm50mm
	moving un breath			﹥ 360mm60mm
	moving up and down			720~1800mm
MAX VOLUME OF RADIOGRAPH
Focus of X-Ray tube	Radiograph mA	Max Radiograph KV			Max exposure time allow
Small focus	15mA	90KV			6.3S
Large focus	30mA	90KV			6.3S
	60mA	90KV			6.3S
	100mA	85KV			2.5S
	125mA	82 KV			1.0S
