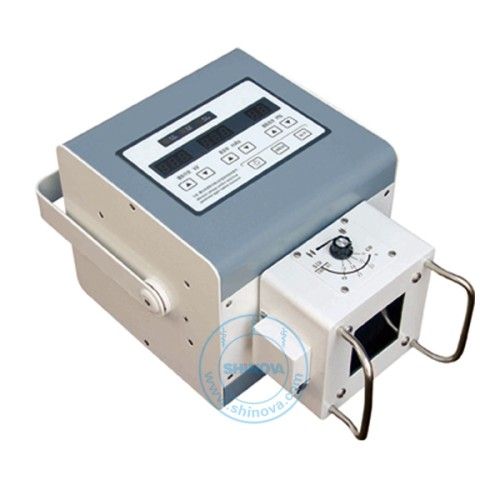

HF Portable Vet X-ray Machine (PX24V)

bargain

Model NO.	PX24V
Transport Package	Case
Origin	China
Trademark	SHINOVA
Specification	CE, ISO

High-frequency X-ray for Veterinary Use
Model: PX24V
High Frequency Portable X-ray generator
Output 100kV/24mA
Max current 60 mA
Power(max) 2.4kW
Exposure Time 0.008s~3.33s
MAs range 0.5mAs~160mAs 46step
KV range 40kV~100kV 2KV steps 31step
Inverter Frequency 30KHz
Collimator light filed size Max. Light field: ≤ 35cm*35cm @65cm SID, Min. Light field: ≤ 5cm*5cm @100cm SID0cm SID0cm SID
Focal Spot 1.5mm
Voltage Single Prase AC voltage 220V± 10% (50± 1Hz)50± 1Hz)n; 1Hz)50± 1Hz)
Power supply capacity ≥ 3.5KVA5KVA5KVA
Electricity protection type Class I, Type B
Weight 18.6KG
Dimension 255mm*230mm*351mm
Portable plate detector

Imaging	Scintillator and Amorphous Silicon (a-Si)
Pixel Pitch	160x 160 microns
Pixels	1464x 1776 (2.6million pixels)	2208x2688(5.9million pixels)
Sensor	lanmit
Imaging Area	9x 11 inches (23x 28 cm)	14x 17inches (35x43cm)
Dimensions	14inches x 15inches x 0.9 inches(344 mm x 380 mm x 22.5mm)	19.3x19.3x0.9in(491x477x23mm)
Data Output	DICOM3.0, Ethernet10/100Base TX
Scintillator	Gadolinium Oxysulfide
A/D	14-bit
Operating Environment	41-95& deg; F (5-36& deg; C), 30-75% RH (non-condensing)ndensing)ndensing)
Preview Image	3-seconds
Weight	5.9 lb. (2.7 kg)	10.6lb(4.8KG)
Standard Accessories	Sensor unit, power source box, teleswitch, X light interface cable
